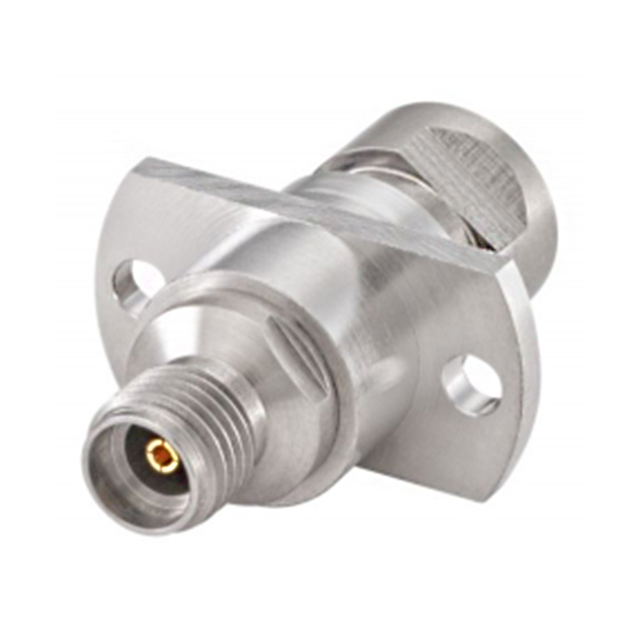

03K721-S23S3

Active

Rosenberger

PRECISION 3.5 FLOATING ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 3.5 FLOATING ADAPTER

Technical Specifications

Parameters and characteristics for this part

PRECISION 3.5 FLOATING ADAPTER

Part	Adapter Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Mating Cycles	Body Material	Dielectric Material	Mounting Feature	Frequency - Max [Max]	Insertion Loss	Convert To (Adapter End)	Adapter Series [Max]	Adapter Series [Min]	Conversion Type	Convert From (Adapter End)	Center Contact Material	Impedance	Style
Rosenberger 03K721-S23S3	Plug to Jack	85 °C	-40 °C	Gold	500	Stainless Steel	Polystyrene (PS)	Flange	26.5 GHz	0.21 dB	3.5mm Jack, Female Socket	RPC-3.50	RPC-3.50	Same Series	3.5mm Plug, Male Pin	Beryllium Copper	50 Ohms	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 401.30

General part information

Adapter Coaxial Connector 3.5mm Plug, Male Pin To 3.5mm Jack, Female Socket 50 Ohms
