VET30US240C2-JA

Obsolete

XP Power

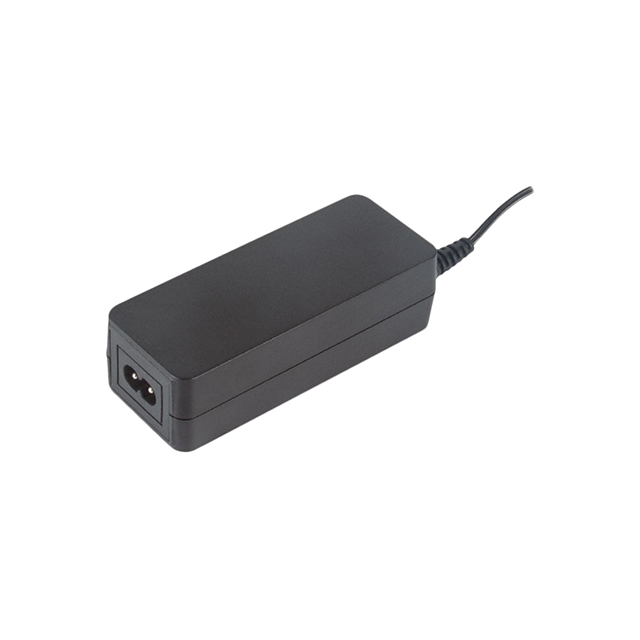

AC/DC DESKTOP ADAPTER 24V 30W

Search across all available documentation for this part.

Obsolete

XP Power

AC/DC DESKTOP ADAPTER 24V 30W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24V 30 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	VET30US240C2-JA	VET30 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB	CB
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	1.25 A	1.25 - 2.5 A
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Form	Desktop (Class II)	Desktop (Class II)
Input Connector	IEC 320-C8	IEC 320-C8
Input Type	Cord	Cord
No Load Power Consumption [Max]	75 mW	75 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [z]	12 mm	12 mm
Polarization	Positive Center	Positive Center
Power (Watts)	30 W	30 W
Region Utilized	International	International
Size / Dimension [x]	115 mm	115 mm
Size / Dimension [x]	4.53 "	4.53 "
Size / Dimension [y]	1.89 in	1.89 in
Size / Dimension [y]	48 mm	48 mm
Size / Dimension [z]	1.28 in	1.28 in
Size / Dimension [z]	32.5 mm	32.5 mm
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	24 V	12 - 24 V

AC/DC DESKTOP ADAPTER 18V 30W

Part	Standard Number	Polarization	No Load Power Consumption [Max]	Approval Agency	Efficiency	Output Connector	Output Connector [diameter]	Output Connector [z]	Form	Applications	Power (Watts)	Input Type	Cord Length	Cord Length	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Region Utilized	Input Connector	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output
XP Power VET30US180C2-JA	62368-1	Positive Center	75 mW	CB	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	Desktop (Class II)	ITE (Commercial)	30 W	Cord	1.5 m	59 in	60 °C	1.28 in	1.89 in	115 mm	4.53 "	32.5 mm	48 mm	International	IEC 320-C8	1.67 A	90 VAC	264 VAC	18 V
XP Power VET30US150C2-JA	62368-1	Positive Center	75 mW	CB	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	Desktop (Class II)	ITE (Commercial)	30 W	Cord	1.5 m	59 in	60 °C	1.28 in	1.89 in	115 mm	4.53 "	32.5 mm	48 mm	International	IEC 320-C8	2 A	90 VAC	264 VAC	15 VDC
XP Power VET30US120C2-JA	62368-1	Positive Center	75 mW	CB	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	Desktop (Class II)	ITE (Commercial)	30 W	Cord	1.5 m	59 in	60 °C	1.28 in	1.89 in	115 mm	4.53 "	32.5 mm	48 mm	International	IEC 320-C8	2.5 A	90 VAC	264 VAC	12 V
XP Power VET30US240C2-JA	62368-1	Positive Center	75 mW	CB	CoC Tier 2, Level VI	Barrel Plug	2.1 mm, 5.5 mm	12 mm	Desktop (Class II)	ITE (Commercial)	30 W	Cord	1.5 m	59 in	60 °C	1.28 in	1.89 in	115 mm	4.53 "	32.5 mm	48 mm	International	IEC 320-C8	1.25 A	90 VAC	264 VAC	24 V
