966870-1
ActiveTE Connectivity AMP Connectors

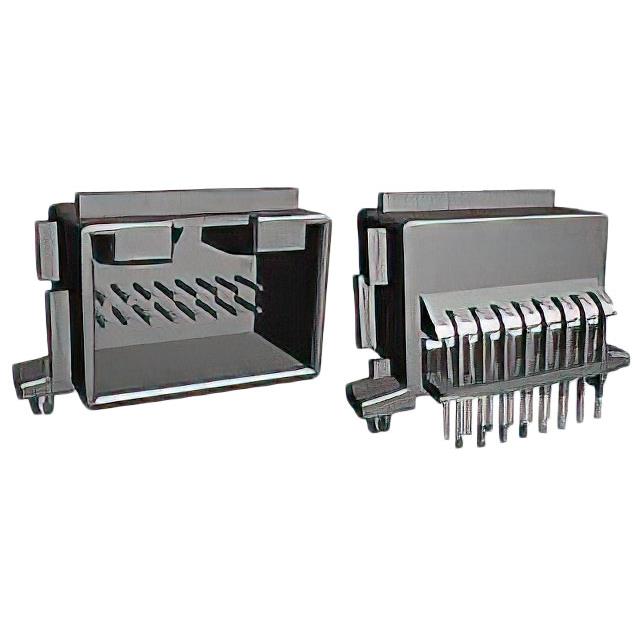

CONN HEADER R/A 16POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
966870-1
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 16POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 966870-1 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 6 mm |
| Contact Length - Mating | 0.236 in |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Insulation Color | Black |
| Insulation Height | 0.772 " |
| Insulation Height | 19.6 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 560 | $ 6.15 | |
966870 Series
CONN HEADER R/A 16POS 2.54MM
| Part | Insulation Height | Insulation Height | Termination | Mounting Type | Contact Type | Insulation Color | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Applications | Contact Shape | Fastening Type | Style | Number of Positions Loaded | Shrouding | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Number of Rows | Number of Positions | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 966870-1 | 0.772 " | 19.6 mm | Solder | Through Hole, Right Angle | Male Pin | Black | 6 mm | 0.236 in | Tin | 0.13 in | 3.3 mm | 0.1 in | 2.54 mm | Automotive | Square | Friction Lock | Board to Cable/Wire | All | Shrouded - 4 Wall | Copper Alloy | 85 °C | -40 °C | Header | 2 | 16 | 2.54 mm | 0.1 in | Polybutylene Terephthalate (PBT), Glass Filled |
Description
General part information
966870 Series
Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
Documents
Technical documentation and resources
