BC846S

Active

Diotec Semiconductor

TRANS 2NPN 65V 100MA SOT-363

Search across all available documentation for this part.

Active

Diotec Semiconductor

TRANS 2NPN 65V 100MA SOT-363

Technical Specifications

Parameters and characteristics for this part

Specification	BC846S

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	15 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	200
Frequency - Transition	100 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

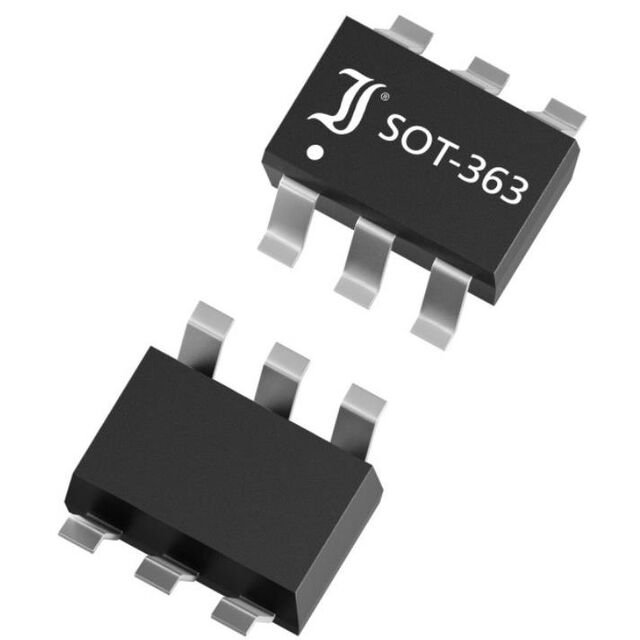

Package / Case	6-VSSOP, SC-88, SOT-363
Power - Max [Max]	250 mW
Supplier Device Package	SOT-363
Transistor Type	2 NPN (Dual)
Vce Saturation (Max) @ Ib, Ic	600 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	65 V

TRANS 2NPN 65V 100MA SOT-363

Part	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Mounting Type	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Transition	Current - Collector Cutoff (Max) [Max]	Transistor Type	Supplier Device Package	Current - Collector (Ic) (Max) [Max]
Diotec Semiconductor BC846S	250 mW	200	6-VSSOP, SC-88, SOT-363	Surface Mount	600 mV	65 V	-55 °C	150 °C	100 MHz	15 nA	2 NPN (Dual)	SOT-363	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor Array 2 NPN (Dual) 65V 100mA 100MHz 250mW Surface Mount SOT-363
