936224-1

Active

TE Connectivity AMP Connectors

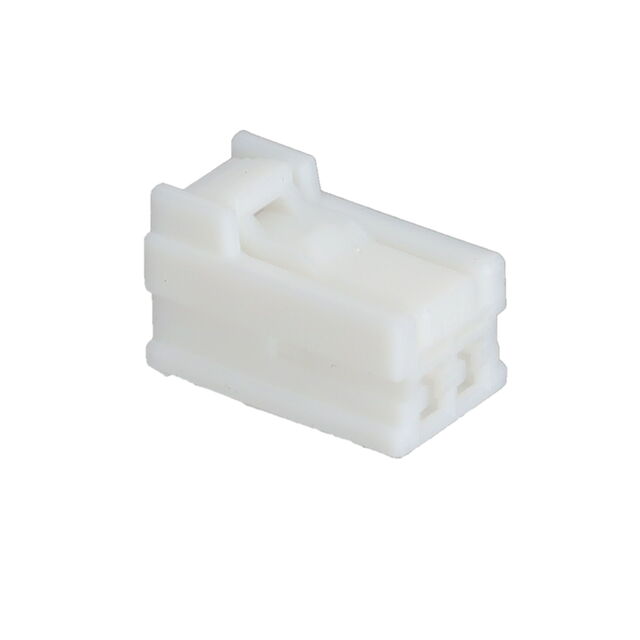

CONN PLUG HSG 2POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 2POS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Natural

Technical documentation and resources

Specification	936224-1	936224 Series

	-	-
Color	Natural	Natural
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C

Part	Connector Type	Mounting Type	Insulation Material	Contact Type	Number of Positions	Note	Color	Number of Rows	Fastening Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 936224-1	Plug	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Female Socket	2	Contacts Not Included	Natural	1	Latch Lock	Crimp	-30 ░C	105 ░C
