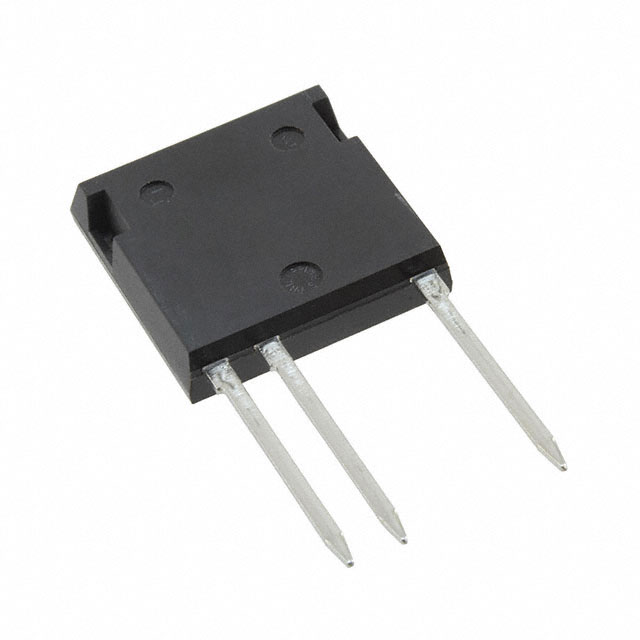

IXBF50N360

Obsolete

IXYS

IGBT 3600V 70A 290W I4-PAK

Search across all available documentation for this part.

Obsolete

IXYS

IGBT 3600V 70A 290W I4-PAK

Technical Specifications

Parameters and characteristics for this part

Specification	IXBF50N360

Current - Collector (Ic) (Max) [Max]	70 A
Current - Collector Pulsed (Icm)	420 A
Gate Charge	210 nC
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	i4-Pac™-5 (3 Leads)
Power - Max [Max]	290 W
Reverse Recovery Time (trr)	1.7 µs
Supplier Device Package	ISOPLUS i4-PAC™
Td (on/off) @ 25°C [Max]	205 ns
Td (on/off) @ 25°C [Min]	46 ns
Test Condition	5 Ohm, 15 V, 50 A, 960 V
Vce(on) (Max) @ Vge, Ic	2.9 V
Voltage - Collector Emitter Breakdown (Max)	3600 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Package / Case	Test Condition	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max)	Current - Collector Pulsed (Icm)	Vce(on) (Max) @ Vge, Ic	Reverse Recovery Time (trr)	Td (on/off) @ 25°C [Min]	Td (on/off) @ 25°C [Max]	Gate Charge	Power - Max [Max]	Mounting Type
IXYS IXBF50N360	-55 °C	150 °C	70 A	i4-Pac™-5 (3 Leads)	5 Ohm 15 V 50 A 960 V	ISOPLUS i4-PAC™	3600 V	420 A	2.9 V	1.7 µs	46 ns	205 ns	210 nC	290 W	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT 3600 V 70 A 290 W Through Hole ISOPLUS i4-PAC™
