0722-0-33-15-47-27-10-0
ActiveMill-Max Manufacturing Corp.

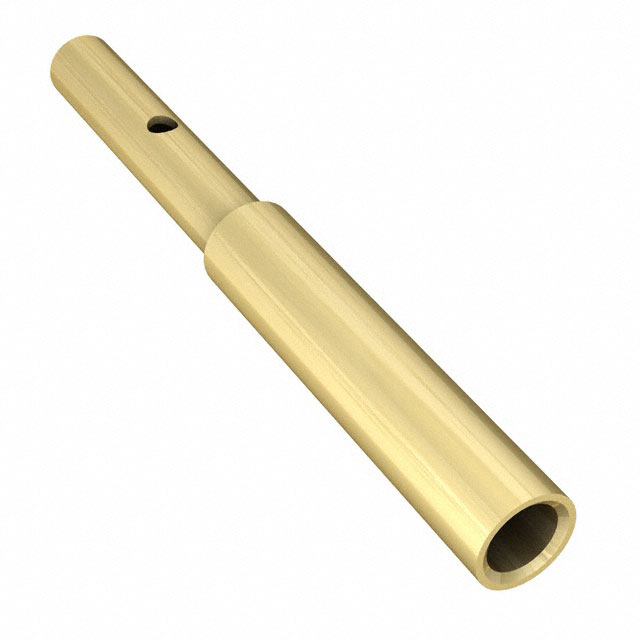

CONN PIN RCPT .025-.037 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
0722-0-33-15-47-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .025-.037 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0722-0-33-15-47-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.037 " |
| Accepts Pin Diameter [Max] | 0.94 mm |
| Accepts Pin Diameter [Min] | 0.64 mm |
| Accepts Pin Diameter [Min] | 0.025 " |
| Accepts Square Pin Size [diameter] | 0.64 mm |
| Accepts Square Pin Size [diameter] | 0.025 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Length - Overall [x] | 0.518 in |
| Length - Overall [x] | 13.16 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.051 in |
| Pin Hole Diameter [diameter] | 1.3 mm |
| Socket Depth | 0.2 in |
| Socket Depth | 5.08 mm |
| Tail Type | Crimp |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.05 | |
| 10 | $ 0.80 | |||
| 100 | $ 0.61 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.48 | |||
| 5000 | $ 0.40 | |||
| 10000 | $ 0.38 | |||
Description
General part information
0722-0 Series
Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Crimp Solder
