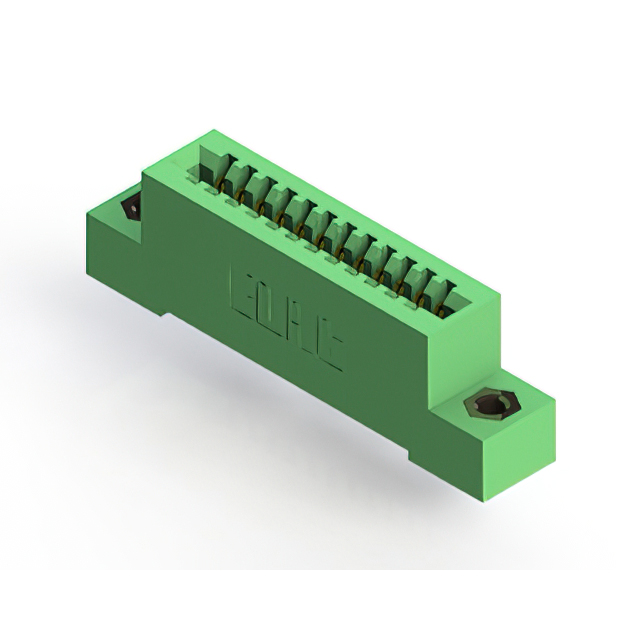

842-012-524-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 12POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-012-524-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 12POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-012-524-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
842-012 Series
...
| Part | Read Out | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Color | Contact Material | Gender | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination | Contact Type | Material - Insulation | Termination Rows | Mounting Type | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Gold | 12 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | 125 °C | -40 °C | 2 | Green | Copper Alloy | Female | 2.54 mm | 0.1 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Wire Wrap | Cantilever | Diallyl Phthalate (DAP) | 2 | Through Hole | Non Specified - Dual Edge |
EDAC Inc. | Single | Gold | 12 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 125 °C | -40 °C | 1 | Green | Copper Alloy | Female | 2.54 mm | 0.1 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Solder | Cantilever | Diallyl Phthalate (DAP) | 1 | Through Hole Right Angle | Non Specified - Single Edge |
EDAC Inc. | Single | Gold | 12 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 125 °C | -40 °C | 1 | Green | Copper Alloy | Female | 2.54 mm | 0.1 in | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Wire Wrap | Cantilever | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge |
EDAC Inc. | Dual | Gold | 12 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | 125 °C | -40 °C | 2 | Green | Copper Alloy | Female | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Cantilever | Diallyl Phthalate (DAP) | 2 | Through Hole Right Angle | Non Specified - Dual Edge | ||
EDAC Inc. | Single | Gold | 12 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 125 °C | -40 °C | 1 | Green | Copper Alloy | Female | 2.54 mm | 0.1 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Wire Wrap | Cantilever | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge |
EDAC Inc. | Dual | Gold | 12 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | 125 °C | -40 °C | 2 | Green | Copper Alloy | Female | 2.54 mm | 0.1 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Wire Wrap | Cantilever | Diallyl Phthalate (DAP) | 2 | Through Hole | Non Specified - Dual Edge |
EDAC Inc. | Single | Gold | 12 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 125 °C | -40 °C | 1 | Green | Copper Alloy | Female | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Cantilever | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge | ||
EDAC Inc. | Dual | Gold | 12 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 6 | 125 °C | -40 °C | 2 | Green | Copper Alloy | Female | 2.54 mm | 0.1 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Solder Eyelet(s) | Cantilever | Diallyl Phthalate (DAP) | 2 | Through Hole | Non Specified - Dual Edge |
EDAC Inc. | Single | Gold | 12 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 125 °C | -40 °C | 1 | Green | Copper Alloy | Female | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | Solder | Cantilever | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge | ||
EDAC Inc. | Single | Gold | 12 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 125 °C | -40 °C | 1 | Green | Copper Alloy | Female | 2.54 mm | 0.1 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Solder | Cantilever | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-012 Series
12 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
