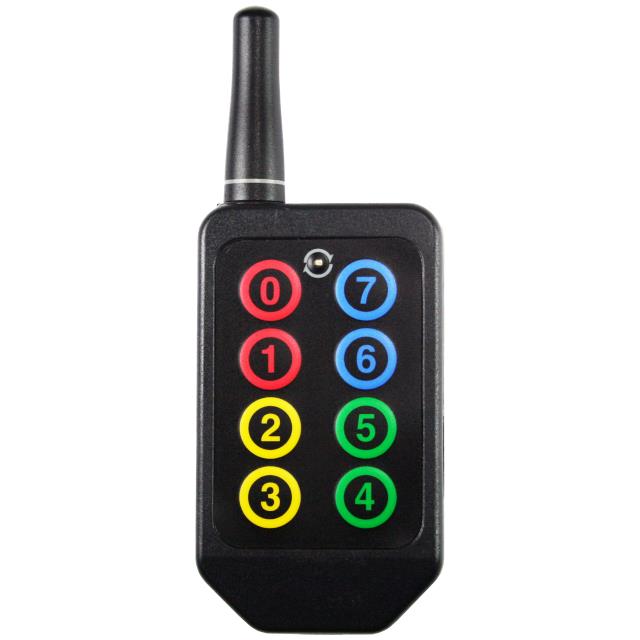

OTX-868-HH-LR8-PRC

Active

TE Connectivity Linx

HUMPRC 8 BUTTON LONG-RANGE HANDH

Search across all available documentation for this part.

Active

TE Connectivity Linx

HUMPRC 8 BUTTON LONG-RANGE HANDH

Technical Specifications

Parameters and characteristics for this part

Specification	OTX-868-HH-LR8-PRC

Applications	Access Control System, Keyless Entry, Home Automation, Remote Control
Features	EU Cert, AES 128, 8 Buttons
Features	1.3 km
Frequency [Max]	870 MHz
Frequency [Min]	863 MHz
Function	Transmitter
Interface	8 Button, Handheld
Modulation or Protocol	FSK, FHSS
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.1 V

Part	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Modulation or Protocol	Features	Features	Frequency [Max]	Frequency [Min]	Function	Applications
TE Connectivity Linx OTX-868-HH-LR8-PRC	8 Button Handheld	2.1 V	3.6 V	FHSS FSK	8 Buttons AES 128 EU Cert	1.3 km	870 MHz	863 MHz	Transmitter	Access Control System Home Automation Keyless Entry Remote Control

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Transmitter 863MHz ~ 870MHz FHSS, FSK Handheld, 8 Button
