1539M08

Active

Hammond Manufacturing

FIXED IND 1MH 1.3A 801 MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

Documents1539 Series

1539M08

Active

Hammond Manufacturing

FIXED IND 1MH 1.3A 801 MOHM TH

Deep-Dive with AI

Documents1539 Series

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.53
		10	$ 12.74
		100	$ 12.41

Description

General part information

1539 Series

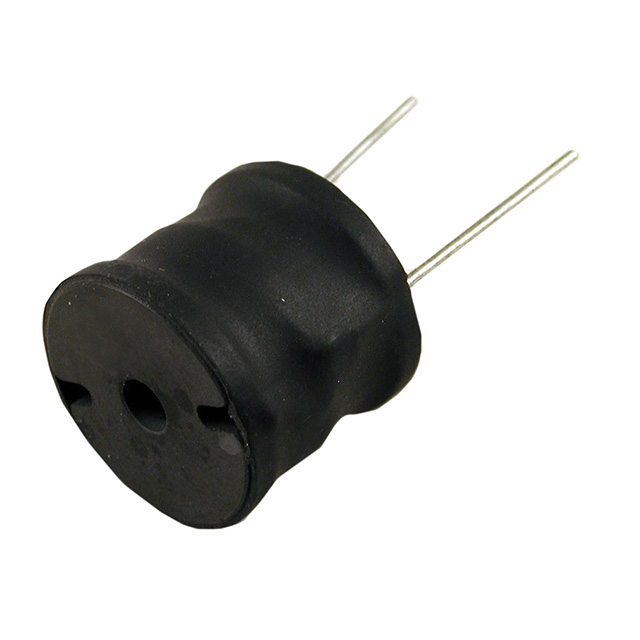

1 mH Unshielded Drum Core, Wirewound Inductor 1.3 A 801mOhm Max Radial, Vertical Cylinder

Documents

Technical documentation and resources

1539 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1539M08	1539 Series

Current Rating (Amps)	1.3 A	0.85 - 20 A
DC Resistance (DCR)	-	12 - 499 mOhm
DC Resistance (DCR) [Max]	801 mOhm	1.08 - 801 mOhm
Height - Seated (Max)	-	1.5 "
Height - Seated (Max)	-	38.1 mm
Height - Seated (Max) [Max] [z]	23.11 mm	23.11 - 28.19 mm
Height - Seated (Max) [Max] [z]	0.91 "	0.91 - 1.11 in
Inductance	1 mH	1 - 500 µH
Material - Core	Ferrite	Ferrite
Mounting Type	Through Hole	Through Hole
Package / Case	Radial, Vertical Cylinder	Radial, Vertical Cylinder
Shielding	Unshielded	Unshielded
Size / Dimension	-	38.1 mm
Size / Dimension [diameter]	21.08 mm	21.08 - 30.99 mm
Size / Dimension [diameter]	0.83 "	0.83 - 1.5 in
Tolerance	10 %	10 %
Type	Wirewound, Drum Core	Wirewound, Drum Core

1539 Series

FIXED IND 100UH 9.8A 25 MOHM TH

Part	Current Rating (Amps)	Shielding	Type	Tolerance	Material - Core	Mounting Type	Size / Dimension	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)	Package / Case	Inductance	Size / Dimension [diameter]	DC Resistance (DCR) [Max]
Hammond Manufacturing 1539M20	9.8 A	Unshielded	Drum Core, Wirewound	10 %	Ferrite	Through Hole	38.1 mm	1.5 in	1.11 in	28.19 mm	25 mOhm	Radial, Vertical Cylinder	100 µH
Hammond Manufacturing 1539M14	7 A	Unshielded	Drum Core, Wirewound	10 %	Ferrite	Through Hole		1.22 "	1.11 in	28.19 mm		Radial, Vertical Cylinder	100 µH	30.99 mm	34 mOhm
Hammond Manufacturing 1539M19	14 A	Unshielded	Drum Core, Wirewound	10 %	Ferrite	Through Hole	38.1 mm	1.5 in	1.11 in	28.19 mm	12 mOhm	Radial, Vertical Cylinder	50 µH
Hammond Manufacturing 1539M01	15 A	Unshielded	Drum Core, Wirewound	10 %	Ferrite	Through Hole		0.83 "	0.91 "	23.11 mm		Radial, Vertical Cylinder	5 µH	21.08 mm
Hammond Manufacturing 1539M17	2.5 A	Unshielded	Drum Core, Wirewound	10 %	Ferrite	Through Hole		1.22 "	1.11 in	28.19 mm		Radial, Vertical Cylinder	1 mH	30.99 mm	279 mOhm
Hammond Manufacturing 1539M21	6.4 A	Unshielded	Drum Core, Wirewound	10 %	Ferrite	Through Hole	38.1 mm	1.5 in	1.11 in	28.19 mm		Radial, Vertical Cylinder	250 µH		59 mOhm
Hammond Manufacturing 1539M16	3.7 A	Unshielded	Drum Core, Wirewound	10 %	Ferrite	Through Hole		1.22 "	1.11 in	28.19 mm		Radial, Vertical Cylinder	500 µH	30.99 mm	129 mOhm
Hammond Manufacturing 1539M12	14 A	Unshielded	Drum Core, Wirewound	10 %	Ferrite	Through Hole		1.22 "	1.11 in	28.19 mm		Radial, Vertical Cylinder	25 µH	30.99 mm	9 mOhm
Hammond Manufacturing 1539M09	0.85 A	Unshielded	Drum Core, Wirewound	10 %	Ferrite	Through Hole		0.83 "	0.91 "	23.11 mm		Radial, Vertical Cylinder	2.5 mH	21.08 mm	2.04 Ohm
Hammond Manufacturing 1539M08	1.3 A	Unshielded	Drum Core, Wirewound	10 %	Ferrite	Through Hole		0.83 "	0.91 "	23.11 mm		Radial, Vertical Cylinder	1 mH	21.08 mm	801 mOhm
