SFM-102-01-L-D-A

Active

Samtec Inc.

CONN RCPT 4POS 0.05 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

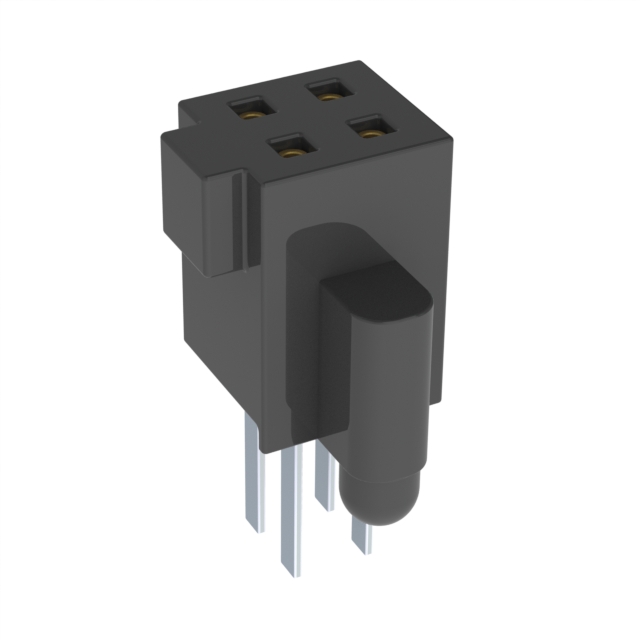

SFM-102-01-L-D-A

Active

Samtec Inc.

CONN RCPT 4POS 0.05 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFM-102-01-L-D-A

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	7.8 mm, 9.73 mm, 11.48 mm, 7.95 mm, 11.63 mm, 9.58 mm, 6.02 mm, 6.17 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

SFM-102 Series

Part	Current Rating (Amps)	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Type	Contact Finish - Mating	Mated Stacking Heights	Termination	Style	Insulation Color	Material Flammability Rating	Insulation Material	Number of Positions	Number of Rows	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Finish - Post	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Number of Positions Loaded	Features	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. SFM-102-02-S-D-LC	3.2 A	250 VAC	0.05 in	1.27 mm	Square	Female Socket	Gold	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Solder	Board to Board Cable	Black	UL94 V-0	Liquid Crystal Polymer (LCP)	4	2	Beryllium Copper	30 Áin	0.76 Ám	Receptacle	Tin	Push-Pull	-55 °C	125 °C	0.185 in	4.7 mm	0.05 in	1.27 mm	Surface Mount	All
Samtec Inc. SFM-102-02-L-D-A	3.2 A	250 VAC	0.05 in	1.27 mm	Square	Female Socket	Gold	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Solder	Board to Board Cable	Black	UL94 V-0	Liquid Crystal Polymer (LCP)	4	2	Beryllium Copper	10 çin	0.25 çm	Receptacle	Tin	Push-Pull	-55 °C	125 °C	0.185 in	4.7 mm	0.05 in	1.27 mm	Surface Mount	All	Board Guide
Samtec Inc. SFM-102-01-L-D-A	3.2 A	250 VAC	0.05 in	1.27 mm	Square	Female Socket	Gold	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	Solder	Board to Board Cable	Black	UL94 V-0	Liquid Crystal Polymer (LCP)	4	2	Beryllium Copper	10 çin	0.25 çm	Receptacle	Tin	Push-Pull	-55 °C	125 °C	0.18 "	4.57 mm	0.05 in	1.27 mm	Through Hole	All	Board Guide	0.12 in	3.05 mm
Samtec Inc. SFM-102-01-S-D	3.2 A	250 VAC	0.05 in	1.27 mm	Square	Female Socket	Gold	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	Solder	Board to Board Cable	Black	UL94 V-0	Liquid Crystal Polymer (LCP)	4	2	Beryllium Copper	30 Áin	0.76 Ám	Receptacle	Tin	Push-Pull	-55 °C	125 °C	0.18 "	4.57 mm	0.05 in	1.27 mm	Through Hole	All		0.12 in	3.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.26

Description

General part information

SFM-102 Series

4 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold

Documents

Technical documentation and resources
