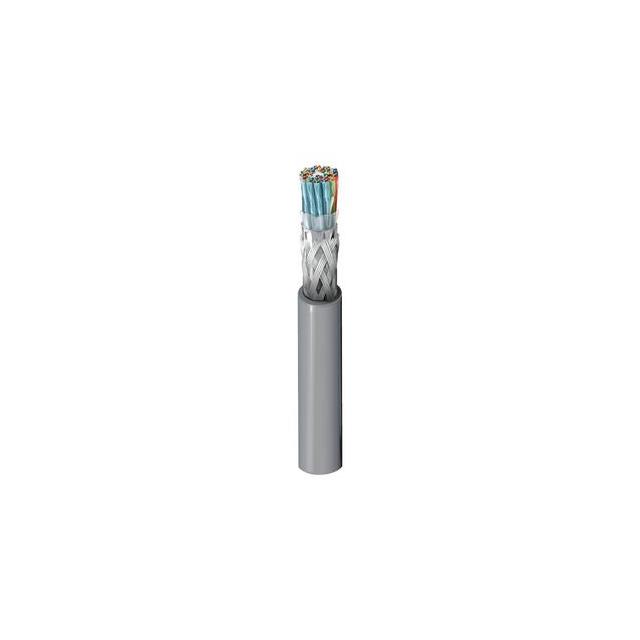

Specification	8185 060100

Cable Type	Multi-Pair
Conductor Arrangement	Twisted
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	32 AWG
Features	Drain Wire
Jacket (Insulation) Diameter	0.822 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.065 in
Jacket Color	Chrome
Length	100 ft
Number of Conductors	50
Number of Conductors - Pair	25
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-40 °C
Ratings	2493, Style, UL
Shield Coverage	65%, 100%
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

8185 Series

Part	Jacket Color	Jacket (Insulation) Thickness	Features	Usage	Ratings	Length	Voltage	Number of Conductors	Conductor Arrangement	Number of Conductors - Pair	Conductor Strand Gauge	Conductor Strand Count	Jacket (Insulation) Diameter	Jacket (Insulation) Material	Wire Gauge	Shield Type	Conductor Material	Operating Temperature (Max)	Operating Temperature (Min)	Cable Type	Conductor Insulation	Shield Coverage	Shield Material
Belden Inc. 8185 0601000	Chrome	0.065 in	Drain Wire	Computer	2493 Style UL	1000 ft	300 V	50	Twisted	25	32 AWG	7 Strands	0.822 in	Poly-Vinyl Chloride (PVC)	24 AWG	Braid Foil	Copper Tinned	60 °C	-40 °C	Multi-Pair	Foam Polyethylene (FPE)	100% 65%	Aluminum Copper Tinned
Belden Inc. 8185 060500	Chrome	0.065 in	Drain Wire	Computer	2493 Style UL	500 ft	300 V	50	Twisted	25	32 AWG	7 Strands	0.822 in	Poly-Vinyl Chloride (PVC)	24 AWG	Braid Foil	Copper Tinned	60 °C	-40 °C	Multi-Pair	Foam Polyethylene (FPE)	100% 65%	Aluminum Copper Tinned
Belden Inc. 8185 060100	Chrome	0.065 in	Drain Wire	Computer	2493 Style UL	100 ft	300 V	50	Twisted	25	32 AWG	7 Strands	0.822 in	Poly-Vinyl Chloride (PVC)	24 AWG	Braid Foil	Copper Tinned	60 °C	-40 °C	Multi-Pair	Foam Polyethylene (FPE)	100% 65%	Aluminum Copper Tinned
