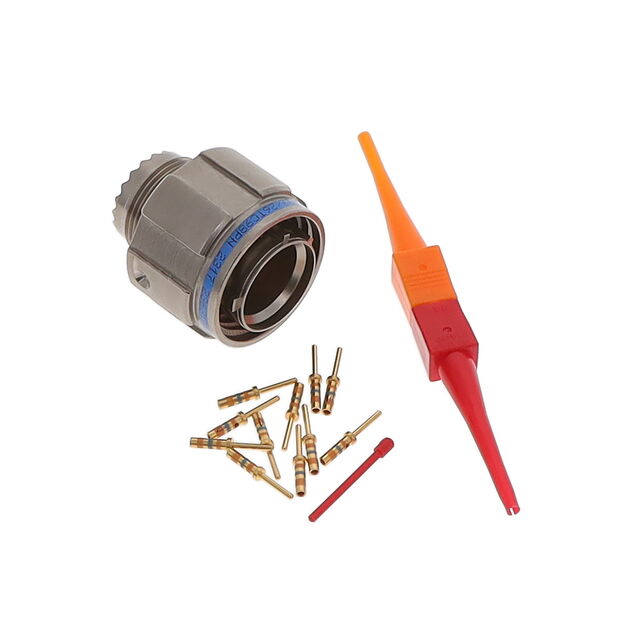

D38999/26TC98PN

Active

Amphenol Aerospace Operations

STRAIGHT PLUG

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

STRAIGHT PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26TC98PN

Applications	Aviation, Marine, Military
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut, Self Locking
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Durmalon™
Shell Material	Aluminum
Shell Size, MIL	C
Shielding	Shielded
Termination	Crimp

Part	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Ingress Protection	Shell Finish	Qualification	Contact Size	Features	Grade	Orientation	Shell Material	Contact Shape	Shielding	Shell Size, MIL	Note	Connector Type	Type	Shell Size - Insert	Primary Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Applications	Contact Material
Amphenol Aerospace Operations D38999/26TC98SN-LC	Crimp	-65 ░C	347 °F	Free Hanging (In-Line)	10	Environment Resistant	Durmalon™	MIL-DTL-38999 Series III	20	Coupling Nut Self Locking	Military	N	Aluminum	Circular	Shielded	C	Contacts Not Included	Plug Housing	For Female Sockets
Amphenol Aerospace Operations D38999/26TC4AN	Crimp	-65 ░C	347 °F	Free Hanging (In-Line)	4	Environment Resistant	Durmalon™	MIL-DTL-38999 Series III	16	Coupling Nut Self Locking	Military	N	Aluminum	Circular	Shielded	C	Contacts Not Included	Plug Housing	For Male Pins	13-4
Amphenol Aerospace Operations D38999/26TC98PN-LC	Crimp	-65 ░C	347 °F	Free Hanging (In-Line)	10	Environment Resistant	Durmalon™	MIL-DTL-38999 Series III	20	Coupling Nut Self Locking	Military	N	Aluminum	Circular	Shielded	C	Contacts Not Included	Plug Housing	For Male Pins
Amphenol Aerospace Operations D38999/26TC98PN		-65 ░C	347 °F	Free Hanging (In-Line)	10	Environment Resistant	Durmalon™	MIL-DTL-38999 Series III		Coupling Nut Self Locking	Military	N	Aluminum		Shielded	C		Male Pins Plug			Metal	Gold	1.27 µm	50 µin	Crimp	Aviation Marine Military	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Plug, Male Pins Crimp
