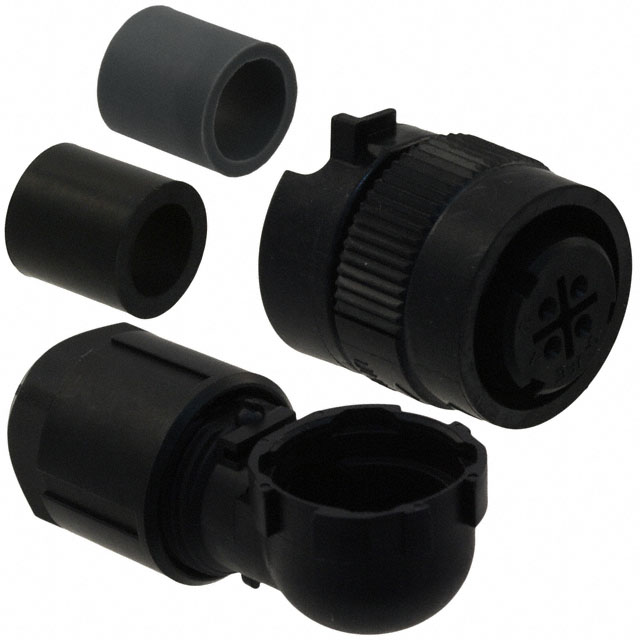

JN1FS04FKK

Active

JAE Electronics

CONN PLUG FMALE 4P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet JN1,JN2 Series Datasheet

JN1FS04FKK

Active

JAE Electronics

CONN PLUG FMALE 4P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet JN1,JN2 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JN1FS04FKK

Backshell Material, Plating	Synthetic Resin
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell, Rotatable
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Plastic
Shell Material	Synthetic Resin
Shell Size - Insert	S

JN1FS04F Series

Part	Current Rating (Amps)	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Primary Material	Backshell Material, Plating	Number of Positions	Contact Material	Shell Material	Color	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Orientation	Fastening Type	Features	Shell Size - Insert	Mounting Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
JAE Electronics JN1FS04FK2	5 A	IP67 - Dust Tight Waterproof	8 mm	0.256 in 0.315 in	6.5 mm	Synthetic Resin	Plastic	Synthetic Resin	4	Copper Alloy	Synthetic Resin	Black	Silver	-20 C	125 °C	Female Sockets Plug	N	Push-Twist	Backshell Coupling Nut Rotatable	S	Free Hanging (In-Line) Right Angle
JAE Electronics JN1FS04FK2X	5 A	IP67 - Dust Tight Waterproof	8 mm	0.256 in 0.315 in	6.5 mm	Synthetic Resin	Plastic	Synthetic Resin	4	Copper Alloy	Synthetic Resin	Black	Silver	-20 C	125 °C	Female Sockets Plug	X	Push-Twist	Backshell Coupling Nut Rotatable	S	Free Hanging (In-Line) Right Angle
JAE Electronics JN1FS04FKK	5 A	IP67 - Dust Tight Waterproof				Synthetic Resin	Plastic	Synthetic Resin	4	Copper Alloy	Synthetic Resin	Black	Silver	-20 C	125 °C	Female Sockets Plug	N	Push-Twist	Backshell Coupling Nut Rotatable	S	Free Hanging (In-Line) Right Angle
JAE Electronics JN1FS04FK1	5 A	IP67 - Dust Tight Waterproof				Synthetic Resin	Plastic	Synthetic Resin	4	Copper Alloy	Synthetic Resin	Black	Silver	-20 C	125 °C	Female Sockets Plug	N	Push-Twist	Backshell Coupling Nut Rotatable	S	Free Hanging (In-Line) Right Angle	0.224 in	0.287 in	7.3 mm	5.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	17	$ 24.40

Description

General part information

JN1FS04F Series

4 (3 + PE) Position Circular Connector Plug, Female Sockets Solder Cup
