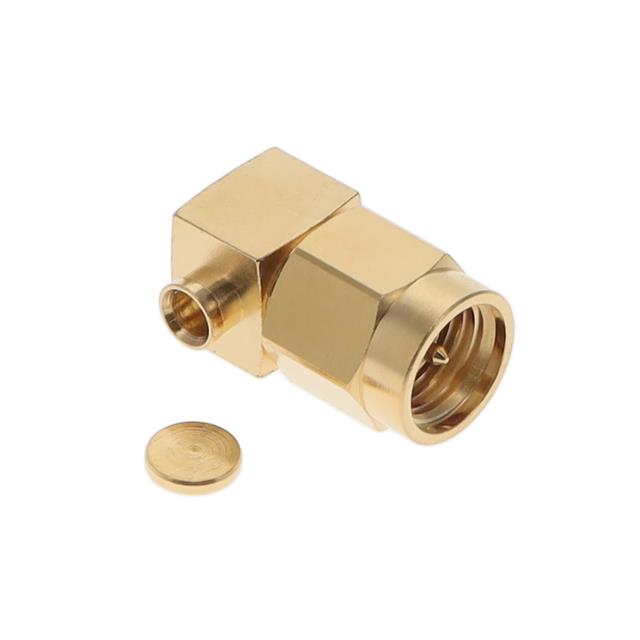

SMA-P-C-HF-RA-CA7 - SMA-P-C-HF-RA-CA7.jpg

SMA-P-C-HF-RA-CA7

Active
Samtec Inc.

1 SMA HEADER 20GHZ 50Ω COAXIAL CONNECTORS (RF) ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSMA DatasheetSMA Series Other Related Documents 03+1
SMA-P-C-HF-RA-CA7 - SMA-P-C-HF-RA-CA7.jpg

SMA-P-C-HF-RA-CA7

Active
Samtec Inc.

1 SMA HEADER 20GHZ 50Ω COAXIAL CONNECTORS (RF) ROHS

Deep-Dive with AI

DocumentsSMA DatasheetSMA Series Other Related Documents 03+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSMA-P-C-HF-RA-CA7
Body FinishGold
Body MaterialBrass
Cable GroupRG-405
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleSMA
Connector TypeMale Pin, Plug
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Frequency - Max [Max]20 GHz
Housing ColorGold
Impedance50 Ohms
Includes1 Connector, 1 Ferrule
Mounting TypeFree Hanging (In-Line), Right Angle
Number of Ports1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-65 ░C
Shield TerminationCrimp
Voltage Rating335 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 18.66
10$ 14.37
25$ 13.00
40$ 12.36
80$ 11.49
230$ 10.33
440$ 9.70
945$ 9.02
LCSCPiece 1$ 23.47
200$ 9.37
500$ 9.05
1000$ 8.90

Description

General part information

SMA-P Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
