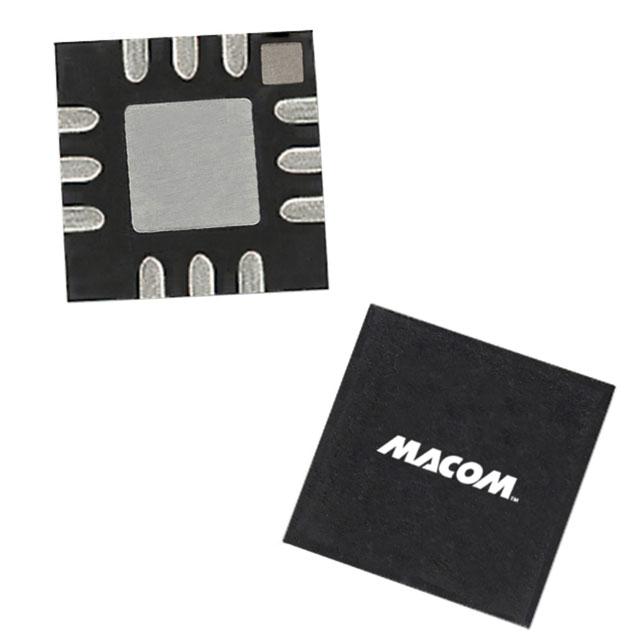

MADP-011104-TR3000
ActiveMACOM Technology Solutions
RF DIODE PIN 800V 12PQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MADP-011104-TR3000
ActiveMACOM Technology Solutions
RF DIODE PIN 800V 12PQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MADP-011104-TR3000 |
|---|---|
| Capacitance @ Vr, F | 0.45 pF |
| Current - Max [Max] | 250 mA |
| Diode Type | PIN - Single |
| Operating Temperature | 175 °C |
| Package / Case | 12-TFQFN Exposed Pad |
| Resistance @ If, F | 2.2 Ohm |
| Supplier Device Package | 12-PQFN (3x3) |
| Voltage - Peak Reverse (Max) [Max] | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 23.91 | |
| 10 | $ 17.58 | |||
| 25 | $ 15.96 | |||
| 100 | $ 14.15 | |||
| 250 | $ 13.27 | |||
| 500 | $ 13.10 | |||
| Digi-Reel® | 1 | $ 23.91 | ||
| 10 | $ 17.58 | |||
| 25 | $ 15.96 | |||
| 100 | $ 14.15 | |||
| 250 | $ 13.27 | |||
| 500 | $ 13.10 | |||
| Tape & Reel (TR) | 3000 | $ 13.10 | ||
Description
General part information
MADP-011104 Series
RF Diode PIN - Single 800V 250 mA 12-PQFN (3x3)
