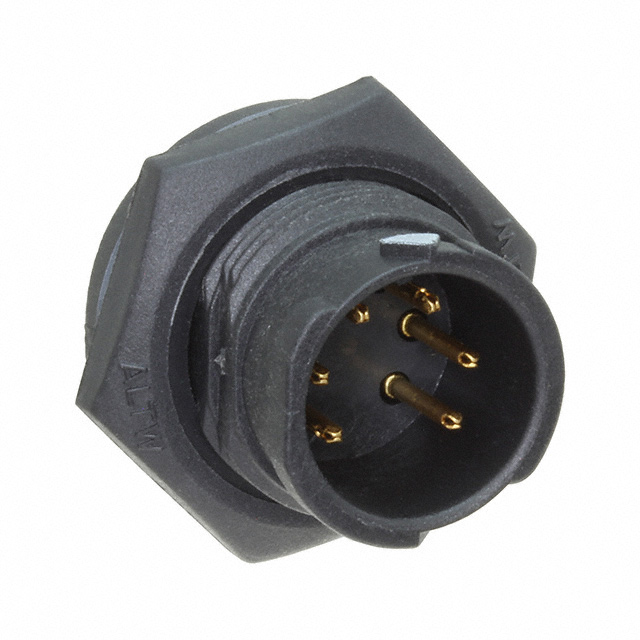

BD-06PMMS-QC8001

Active

Amphenol LTW

CIRCULAR CONNECTOR, STANDARD SIZE, X-LOK SERIES, PANEL MOUNT RECEPTACLE, 6 CONTACTS, SOLDER PIN

Search across all available documentation for this part.

Active

Amphenol LTW

CIRCULAR CONNECTOR, STANDARD SIZE, X-LOK SERIES, PANEL MOUNT RECEPTACLE, 6 CONTACTS, SOLDER PIN

Technical Specifications

Parameters and characteristics for this part

Specification	BD-06PMMS-QC8001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Color	Shell Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Voltage Rating	Connector Type	Current Rating (Amps)	Orientation	Material Flammability Rating	Number of Positions	Shell Size - Insert	Fastening Type	Contact Finish - Mating	Shielding	Insert Material	Mounting Feature	Primary Material
Amphenol LTW BD-06PMMS-QC8001	Black	Glass Filled Nylon Polyamide (PA)	IP68 - Dust Tight Waterproof	-40 °C	105 ░C	Copper Alloy	300 VAC	Male Pins Receptacle	5 A	Keyed	UL94 V-0	6	B	Push-Pull	Gold	Unshielded	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (Data) Position Circular Connector Receptacle, Male Pins Solder Cup
