EDAC Inc.

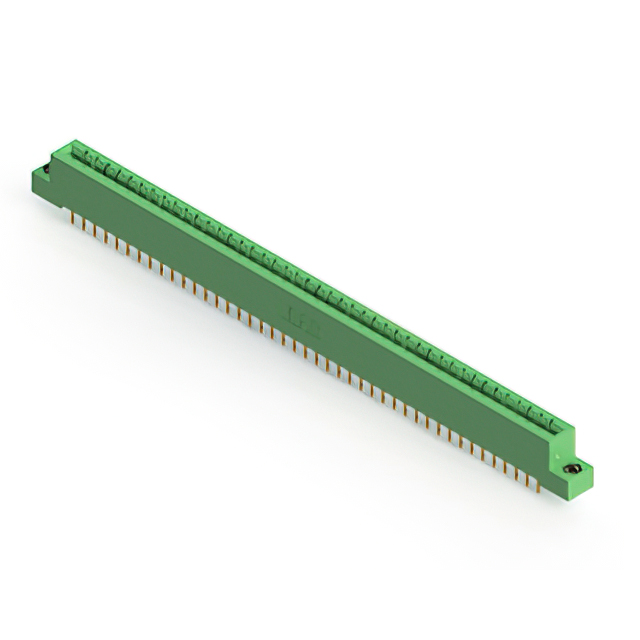

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 43 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

333-043-558-108

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 43 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-043-558-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	43
Number of Positions/Bay/Row [custom]	43
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

333-043 Series

Part	Gender	Number of Positions	Pitch [x]	Pitch [x]	Color	Mounting Type	Termination Rows	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Contact Finish	Read Out	Contact Type	Contact Material	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation
EDAC Inc. 333-043-541-112	Female	43	0.156 in	3.96 mm	Green	Through Hole	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	43	Gold	Single	Cantilever	Copper Alloy	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Non Specified - Single Edge	Wire Wrap	10 Áin	0.25 Ám	Polyester Thermoplastic
EDAC Inc. 333-043-524-607	Female	43	0.156 in	3.96 mm	Green	Through Hole	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	43	Gold	Single	Cantilever	Copper Alloy		M3 Threaded Insert Top Mount Opening		Non Specified - Single Edge	Solder	10 Áin	0.25 Ám	Polyester Thermoplastic
EDAC Inc. 333-043-542-101	Female	43	0.156 in	3.96 mm	Green	Through Hole	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	43	Gold	Single	Cantilever	Copper Alloy				Non Specified - Single Edge	Wire Wrap	10 Áin	0.25 Ám	Polyester Thermoplastic
EDAC Inc. 333-043-540-108	Female	43	0.156 in	3.96 mm	Green	Through Hole	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	43	Gold	Single	Cantilever	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Single Edge	Wire Wrap	10 Áin	0.25 Ám	Polyester Thermoplastic
EDAC Inc. 333-043-544-604	Female	43	0.156 in	3.96 mm	Green	Through Hole	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	43	Gold	Single	Cantilever	Copper Alloy	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Non Specified - Single Edge	Wire Wrap	10 Áin	0.25 Ám	Polyester Thermoplastic
EDAC Inc. 333-043-558-108	Female	43	0.156 in	3.96 mm	Green	Through Hole Right Angle	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	43	Gold	Single	Cantilever	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Single Edge	Wire Wrap	10 Áin	0.25 Ám	Polyester Thermoplastic
EDAC Inc. 333-043-559-608	Female	43	0.156 in	3.96 mm	Green	Through Hole Right Angle	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	43	Gold	Single	Cantilever	Copper Alloy		4-40 Threaded Insert Top Mount Opening		Non Specified - Single Edge	Wire Wrap	10 Áin	0.25 Ám	Polyester Thermoplastic
EDAC Inc. 333-043-544-103	Female	43	0.156 in	3.96 mm	Green	Through Hole	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	43	Gold	Single	Cantilever	Copper Alloy	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Non Specified - Single Edge	Wire Wrap	10 Áin	0.25 Ám	Polyester Thermoplastic
EDAC Inc. 333-043-559-603	Female	43	0.156 in	3.96 mm	Green	Through Hole Right Angle	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	43	Gold	Single	Cantilever	Copper Alloy	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Non Specified - Single Edge	Solder	10 Áin	0.25 Ám	Polyester Thermoplastic
EDAC Inc. 333-043-559-101	Female	43	0.156 in	3.96 mm	Green	Through Hole Right Angle	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	43	Gold	Single	Cantilever	Copper Alloy				Non Specified - Single Edge	Wire Wrap	10 Áin	0.25 Ám	Polyester Thermoplastic
