26ASD22-01-1-AJS

Active

Grayhill Inc.

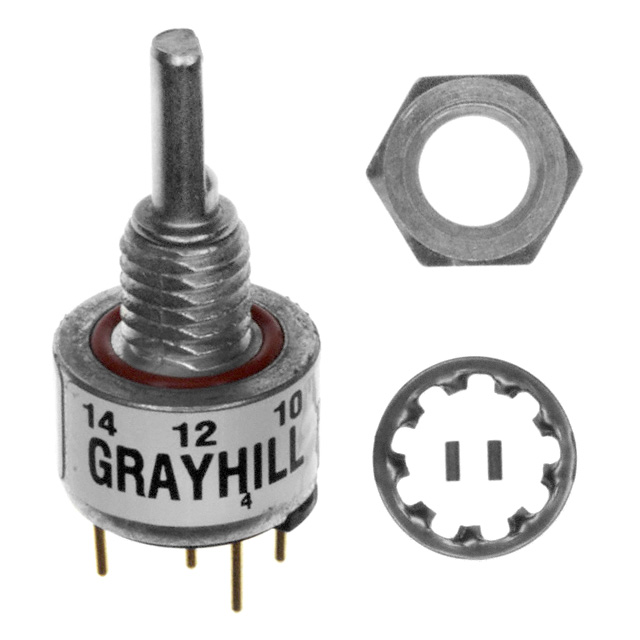

ROTARY ENCODER MECHANICAL 16PPR

Search across all available documentation for this part.

Active

Grayhill Inc.

ROTARY ENCODER MECHANICAL 16PPR

Technical Specifications

Parameters and characteristics for this part

Specification	26ASD22-01-1-AJS

Actuator Type	1/8" Dia Flatted End
Built in Switch	False
Detent	True
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	BCD (Absolute)
Pulses per Revolution	16
Rotational Life (Cycles Min) [Min]	25K
Termination Style	PC Pin

ROTARY ENCODER MECHANICAL 16PPR

Part	Output Type	Orientation	Pulses per Revolution	Termination Style	Detent	Mounting Type	Rotational Life (Cycles Min) [Min]	Actuator Type	Built in Switch	Encoder Type
Grayhill Inc. 26ASD22-01-1-AJS	BCD (Absolute)	Vertical	16	PC Pin		Panel, PCB Through Hole	25K	1/8" Dia Flatted End		Mechanical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Mechanical 16 BCD (Absolute) Vertical
