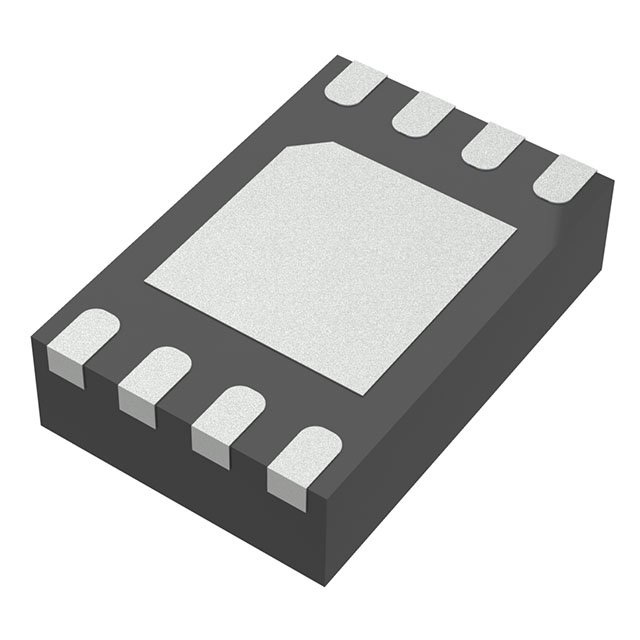

MPQ8904DD-LF-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG LINEAR POS ADJ 500MA 8QFN
Deep-Dive with AI
Search across all available documentation for this part.
MPQ8904DD-LF-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG LINEAR POS ADJ 500MA 8QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ8904DD-LF-Z |
|---|---|
| Control Features | Enable, Power Good |
| Current - Output | 500 mA |
| Current - Quiescent (Iq) | 200 µA |
| Current - Supply (Max) [Max] | 12 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 8-TFDFN Exposed Pad |
| Protection Features | Over Current, Over Temperature |
| Supplier Device Package | 8-QFN (2x3) |
| Voltage - Input (Max) [Max] | 6.5 V |
| Voltage - Output (Max) | 5 V |
| Voltage - Output (Min/Fixed) [Min] | 0.5 V |
| Voltage Dropout (Max) [Max] | 0.45 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.95 | |
| 10000 | $ 0.91 | |||
Description
General part information
MPQ8904 Series
Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 8-QFN (2x3)
Documents
Technical documentation and resources
No documents available
