163A17769X

Active

Amphenol CONEC

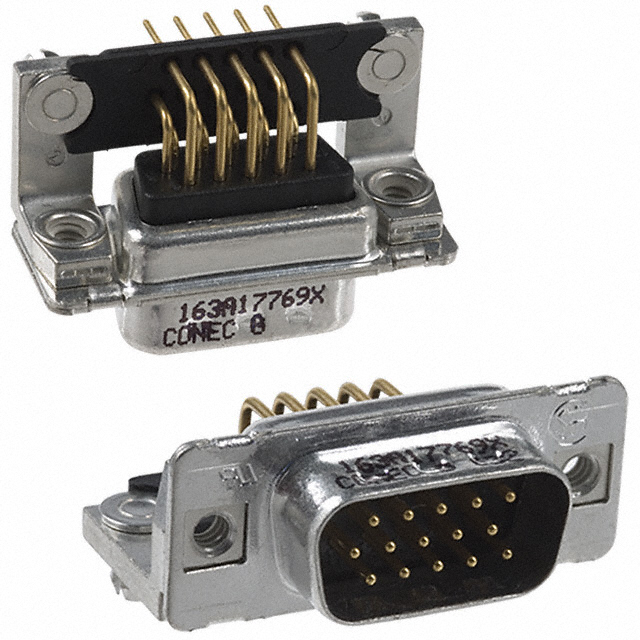

HD D-SUB CONN, R/A PLUG, DE, SOLDER ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

163A17769X

Active

Amphenol CONEC

HD D-SUB CONN, R/A PLUG, DE, SOLDER ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	163A17769X

Backset Spacing	0.314 in
Backset Spacing	7.98 mm
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	60 VDC

163A177 Series

Part	Number of Positions	Dielectric Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Color	Voltage Rating	Flange Feature	Contact Finish	Contact Material	Features	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Material Flammability Rating	Number of Rows	Backset Spacing	Backset Spacing	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Shell Size, Connector Layout
Amphenol CONEC 163A17789X	44	Polybutylene Terephthalate (PBT) Glass Filled	Solder	-55 °C	125 °C	Male Pins Plug	Board Edge Right Angle Through Hole	Black	60 VDC	Housing/Shell (4-40)	Gold	Copper Alloy	Board Lock Grounding Indents	3	B DB	UL94 V-0	3	0.314 in	7.98 mm	Signal	8 çin	0.203 çm	D-Sub High Density	3 A
Amphenol CONEC 163A17769X	15	Polybutylene Terephthalate (PBT) Glass Filled	Solder	-55 °C	125 °C	Male Pins Plug	Board Edge Right Angle Through Hole	Black	60 VDC	Housing/Shell (4-40)	Gold	Copper Alloy	Board Lock Grounding Indents		DE E	UL94 V-0	3	0.314 in	7.98 mm	Signal	8 çin	0.203 çm	D-Sub High Density	3 A	1	High Density
Amphenol CONEC 163A17729X	15	Polybutylene Terephthalate (PBT) Glass Filled	Solder	-55 °C	125 °C	Male Pins Plug	Through Hole Right Angle	Black	60 VDC	M3	Gold	Copper Alloy	Grounding Indents		DE E	UL94 V-0	3	0.314 in	7.98 mm	Signal			D-Sub High Density	3 A	1	High Density
Amphenol CONEC 163A17709X	44	Polybutylene Terephthalate (PBT) Glass Filled	Solder	-55 °C	125 °C	Male Pins Plug	Board Edge Right Angle Through Hole	Black	60 VDC	4-40	Gold	Copper Alloy	Grounding Indents Mounting Brackets	3	B DB	UL94 V-0	3	0.314 in	7.98 mm	Signal			D-Sub High Density	3 A			Flash
Amphenol CONEC 163A17719X	62	Polybutylene Terephthalate (PBT) Glass Filled	Solder	-55 °C	125 °C	Male Pins Plug	Board Edge Right Angle Through Hole	Black	60 VDC	4-40	Gold	Copper Alloy	Grounding Indents Mounting Brackets			UL94 V-0	3	0.314 in	7.98 mm	Signal			D-Sub High Density	3 A			Flash	4
Amphenol CONEC 163A17749X	44	Polybutylene Terephthalate (PBT) Glass Filled	Solder	-55 °C	125 °C	Male Pins Plug	Through Hole Right Angle	Black	60 VDC	M3	Gold	Copper Alloy	Grounding Indents	3	B DB	UL94 V-0	3	0.314 in	7.98 mm	Signal			D-Sub High Density	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.40
		10	$ 11.85
		25	$ 10.72
		40	$ 10.19
		80	$ 9.48
		230	$ 8.66
Newark	Each	1	$ 9.29
		10	$ 8.54
		25	$ 7.91
		50	$ 7.33
		100	$ 6.86
		250	$ 6.45
		500	$ 6.07

Description

General part information

163A177 Series

15 Position D-Sub, High Density Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

Drawing EN

Datasheet
