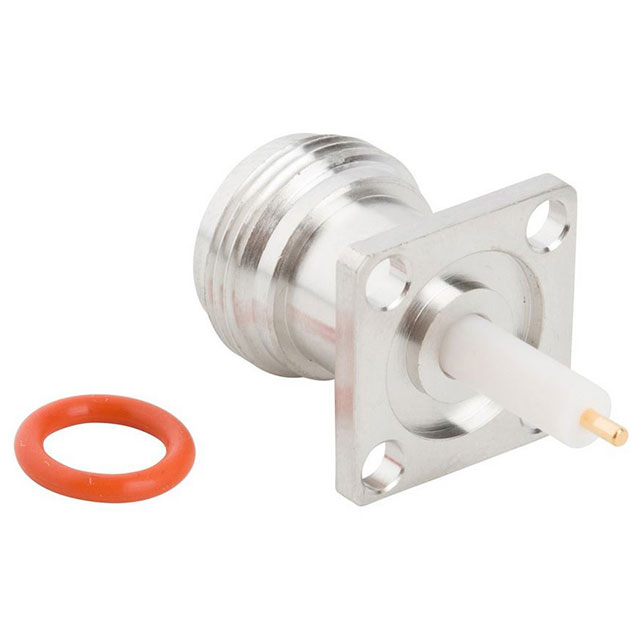

082-6330

Active

Amphenol RF

CONN N JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	082-6330

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Gasket
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1500 V

Part	Insertion Loss	Features	Mating Cycles	Frequency - Max [Max]	Center Contact Plating	Dielectric Material	Shield Termination	Includes	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Body Material	Center Contact Material	Number of Ports	Housing Color	Body Finish	Connector Style	Connector Type	Contact Termination	Mounting Feature	Ingress Protection
Amphenol RF 082-6330	0.15 dB	Extended Insulation	500	11 GHz	Gold	Polytetrafluoroethylene (PTFE)	Solder	1 Connector 1 Gasket	50 Ohms	-65 ░C	165 °C	1500 V	Brass	Phosphor Bronze	1	Silver	White Bronze	N Type	Female Socket Jack	Solder	Flange	Weatherproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
