624 090 3 0 RT

Active

Rennsteig Tools, Inc.

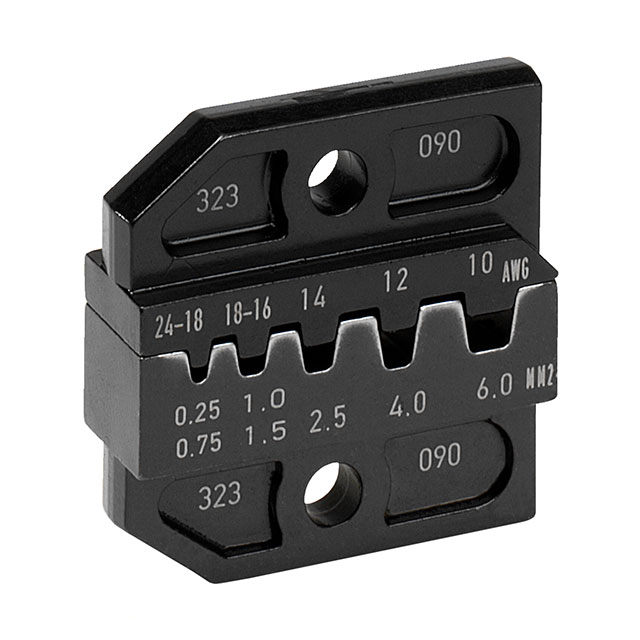

CRIMPING DIE SET FOR PEW12

Search across all available documentation for this part.

Active

Rennsteig Tools, Inc.

CRIMPING DIE SET FOR PEW12

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	624 090 3 0 RT	624 090 Series

For Use With/Related Products	Ferrules	Ferrules
Ratcheting	Ratchet	Ratchet
Tool Type	Hand Crimper	Hand Crimper
Wire Entry Location	Side Entry	Side Entry
Wire Gauge or Range - AWG [Max]	20 AWG	20 AWG
Wire Gauge or Range - AWG [Min]	7 AWG	7 AWG
Wire Gauge or Range - mm² [Max]	6 mm²	6 mm²
Wire Gauge or Range - mm² [Min]	0.25 mm²	0.25 mm²

CRIMPING SYSTEM TOOL 24-10 AWG

Part	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	For Use With/Related Products	Ratcheting	Tool Type	Wire Entry Location	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]
Rennsteig Tools, Inc. 624 090 3 RT	6 mm²	0.25 mm²	Ferrules	Ratchet	Hand Crimper	Side Entry
Rennsteig Tools, Inc. 624 090 3 0 RT	6 mm²	0.25 mm²	Ferrules	Ratchet	Hand Crimper	Side Entry	20 AWG	7 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hand Crimper Tool Ferrules

Technical documentation and resources
