FAD1-02510 Series

Part	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Fan Type	Approval Agency	Voltage - Rated	Bearing Type	Air Flow	Noise	Operating Temperature (Max)	Operating Temperature (Min)	Static Pressure	Termination Leads Count	Termination Type	Termination	Width	RPM	Weight	Power (Watts)	Current Rating	Material - Frame	Voltage Range (Min)	Voltage Range (Max)	Material - Blade
Qualtek FAD1-02510CBAW11	25 mm	Square	25 mm	Tubeaxial	CE cURus TUV	12 VAC	Ball	1.3 CFM	12.5 dB	158 °F	14 °F	0.065 in H2O	2 leads	Wire Leads	2 Wire Leads	10 mm	6000 RPM	0.018 lb	0.48 W	40 mA	Plastic	10.8 VDC	13.2 VDC	Plastic

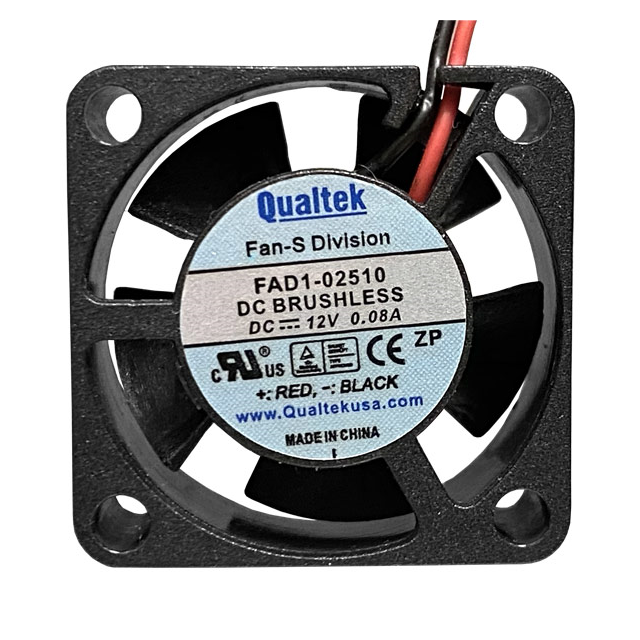

Qualtek FAD1-02510CBMW11	25 mm	Square	25 mm	Tubeaxial	CE cURus TUV	12 VAC	Ball	2.1 CFM	23 dB	158 °F	14 °F	0.15 in H2O	2 leads	Wire Leads	2 Wire Leads	10 mm	10000 RPM	0.018 lb	720 mW	58 mA	Plastic	10.8 VDC	13.2 VDC	Plastic
Qualtek FAD1-02510BBLW11	25 mm	Square	25 mm	Tubeaxial	CE cURus TUV	5 VAC	Ball	1.6 CFM	18.3 dB	158 °F	14 °F	0.09 in H2O	2 leads	Wire Leads	2 Wire Leads	10 mm	8000 RPM	0.018 lb	0.4 W	0.08 A	Plastic	4.5 VDC	5.5 VDC	Plastic
