85111-1

Active

TE Connectivity AMP Connectors

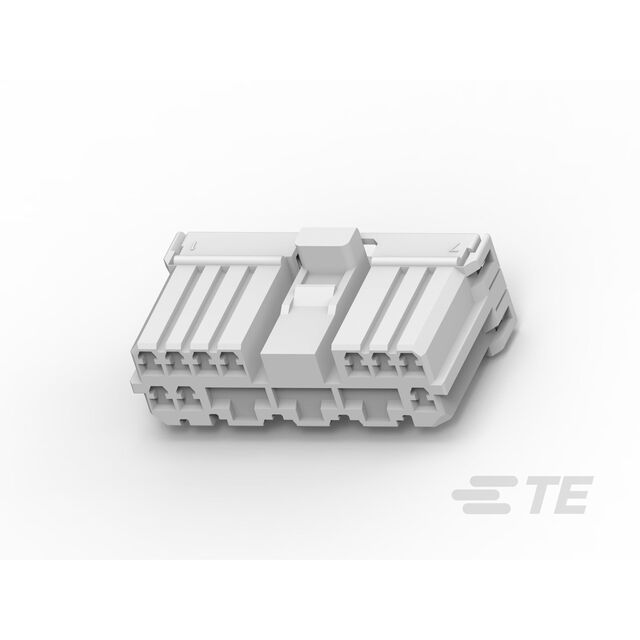

070/250 HYBRID 13P PLUG

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

070/250 HYBRID 13P PLUG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	85111-1	85111 Series

Color	White	Black, White
Connector Type	Receptacle	Plug, Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Holder, Latch Lock
Features	Terminal Position Lock (TPA)	Terminal Position Lock (TPA)
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	13	13
Number of Rows	2	2
Operating Temperature	-	-40 °C
Operating Temperature	-	80 C
Pitch [x]	3.5 mm	3.5 mm
Pitch [x]	0.138 in	0.138 in
Row Spacing	0.205 in	0.205 in
Row Spacing	5.2 mm	5.2 mm

CONN PLUG HSG 13POS 3.50MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Color	Fastening Type	Number of Rows	Note	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Contact Termination	Contact Type	Insulation Material	Row Spacing	Row Spacing	Features
TE Connectivity AMP Connectors 1-85111-2	-40 °C	80 C	13	Black	Latch Holder	2	Contacts Not Included	Plug	Free Hanging (In-Line)	3.5 mm	0.138 in	Crimp	Female Socket	Polybutylene Terephthalate (PBT)	0.205 in	5.2 mm
TE Connectivity AMP Connectors 85111-1			13	White	Latch Lock	2		Receptacle	Free Hanging (In-Line)	3.5 mm	0.138 in	Crimp	Female Socket	Polybutylene Terephthalate (PBT)	0.205 in	5.2 mm	Terminal Position Lock (TPA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13 Rectangular Connectors - Housings Receptacle White 0.138" (3.50mm)
