BU-P2249-C-180

Active

Mueller Electric Co

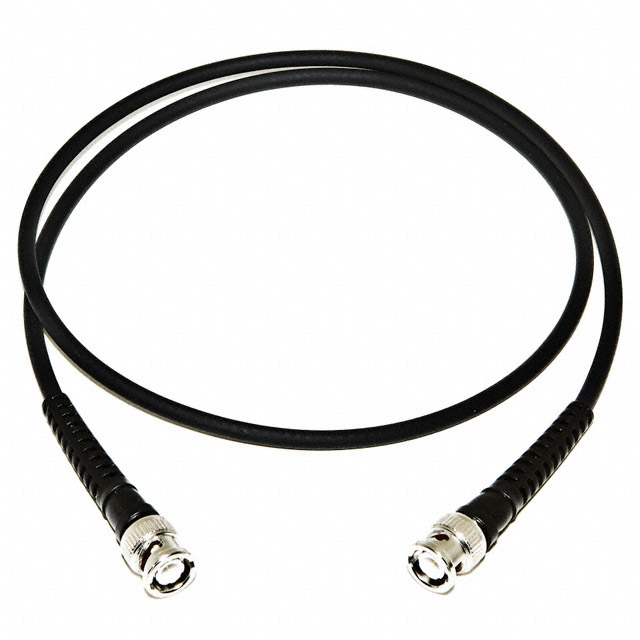

RF / COAXIAL CABLE ASSEMBLY, WITH STRAIN RELIEF, BNC STRAIGHT PLUG, BNC STRAIGHT PLUG, RG58C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BU-P2249-C-180

Active

Mueller Electric Co

RF / COAXIAL CABLE ASSEMBLY, WITH STRAIN RELIEF, BNC STRAIGHT PLUG, BNC STRAIGHT PLUG, RG58C

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P2249-C-180

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58C
Color	Black
Features	Shielded
Length	15 ft
Length	5 yd
Length	4.6 m
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	BNC to BNC

BU-P2249 Series

Part	Cable Impedance	Style	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	1st Contact Gender	2nd Connector	1st Connector Mounting Type	Color	1st Connector	Length	Length	Length	Features	2nd Contact Gender	Overall Impedance	2nd Connector Mounting Type
Mueller Electric Co BU-P2249-C-180	50 Ohms	BNC to BNC	85 °C	-40 °C	RG-58C	Male	BNC Plug	Free Hanging (In-Line)	Black	BNC Plug	15 ft	5 yd	4.6 m	Shielded	Male	50 Ohms	Free Hanging (In-Line)
Mueller Electric Co BU-P2249-C-600	50 Ohms	BNC to BNC	85 °C	-40 °C	RG-58C	Male	BNC Plug	Free Hanging (In-Line)	Black	BNC Plug	50 ft	50 ft	15.2 m	Shielded	Male	50 Ohms	Free Hanging (In-Line)
Mueller Electric Co BU-P2249-C-60	50 Ohms	BNC to BNC	85 °C	-40 °C	RG-58C	Male	BNC Plug	Free Hanging (In-Line)	Black	BNC Plug	5 '	5 ft	1.5 m	Shielded	Male	50 Ohms	Free Hanging (In-Line)
Mueller Electric Co BU-P2249-C-6	50 Ohms	BNC to BNC	85 °C	-40 °C	RG-58C	Male	BNC Plug	Free Hanging (In-Line)	Black	BNC Plug	6 in		152.4 mm	Shielded	Male	50 Ohms	Free Hanging (In-Line)
Mueller Electric Co BU-P2249-C-120	50 Ohms	BNC to BNC	85 °C	-40 °C	RG-58C	Male	BNC Plug	Free Hanging (In-Line)	Black	BNC Plug	10 ft	10 '	3 m	Shielded	Male	50 Ohms	Free Hanging (In-Line)
Mueller Electric Co BU-P2249-C-24	50 Ohms	BNC to BNC	85 °C	-40 °C	RG-58C	Male	BNC Plug	Free Hanging (In-Line)	Black	BNC Plug	24 "		609.6 mm	Shielded	Male	50 Ohms	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 39.69
		10	$ 33.95
		100	$ 32.35
Newark	Each	1	$ 39.69
		100	$ 36.92
		500	$ 34.53
		1000	$ 31.76
		2500	$ 28.98

Description

General part information

BU-P2249 Series

The BU-P2249-C-180 is a 180-inch black RG58C/U RF Coaxial Cable Assembly with BNC straight plug to BNC straight plug connection. The connector is made of tarnish resistant nickel-plated brass body with gold-plated brass centre contact and also has PTFE insulation, non-contaminating PVC jacket, 20AWG (19 x 33) tinned copper centre conductor and tinned copper braid shield (95% coverage). The strain relief is molded PVC that is bonded to the BNC.
