325-019-500-107

Active

EDAC Inc.

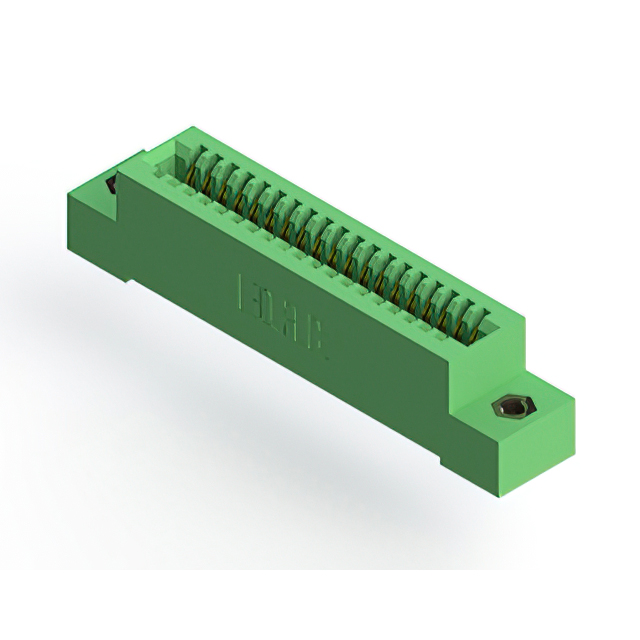

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 19 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

325-019-500-107

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 19 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-019-500-107

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	19
Number of Positions/Bay/Row [custom]	19
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

325-019 Series

Part	Number of Positions/Bay/Row [custom]	Read Out	Gender	Number of Rows	Flange Feature	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Termination Rows	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Pitch [x]	Pitch [x]	Card Thickness	Card Thickness	Contact Type	Color	Material - Insulation	Number of Positions	Contact Finish	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-019-540-107	19	Single	Female	1	Flush Mount M3 Threaded Insert Top Opening	Through Hole	10 Áin	0.25 Ám	Wire Wrap	1	125 °C	-65 ░C	Non Specified - Single Edge	2.54 mm	0.1 in	3.18 mm	0.125 in	Cantilever	Green	Diallyl Phthalate (DAP)	19	Gold	Copper Alloy
EDAC Inc. 325-019-540-101	19	Single	Female	1		Through Hole	10 Áin	0.25 Ám	Wire Wrap	1	125 °C	-65 ░C	Non Specified - Single Edge	2.54 mm	0.1 in	3.18 mm	0.125 in	Cantilever	Green	Diallyl Phthalate (DAP)	19	Gold	Copper Alloy
EDAC Inc. 325-019-500-108	19	Single	Female	1	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	10 Áin	0.25 Ám	Solder Eyelet(s)	1	125 °C	-65 ░C	Non Specified - Single Edge	2.54 mm	0.1 in	3.18 mm	0.125 in	Cantilever	Green	Diallyl Phthalate (DAP)	19	Gold	Copper Alloy
EDAC Inc. 325-019-500-109	19	Single	Female	1	Flush Mount Top Opening Unthreaded	Through Hole	10 Áin	0.25 Ám	Solder Eyelet(s)	1	125 °C	-65 ░C	Non Specified - Single Edge	2.54 mm	0.1 in	3.18 mm	0.125 in	Cantilever	Green	Diallyl Phthalate (DAP)	19	Gold	Copper Alloy	0.16 in	4.06 mm
EDAC Inc. 325-019-500-107	19	Single	Female	1	Flush Mount M3 Threaded Insert Top Opening	Through Hole	10 Áin	0.25 Ám	Solder Eyelet(s)	1	125 °C	-65 ░C	Non Specified - Single Edge	2.54 mm	0.1 in	3.18 mm	0.125 in	Cantilever	Green	Diallyl Phthalate (DAP)	19	Gold	Copper Alloy
EDAC Inc. 325-019-520-107	19	Single	Female	1	Flush Mount M3 Threaded Insert Top Opening	Through Hole	10 Áin	0.25 Ám	Solder	1	125 °C	-65 ░C	Non Specified - Single Edge	2.54 mm	0.1 in	3.18 mm	0.125 in	Cantilever	Green	Diallyl Phthalate (DAP)	19	Gold	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 15.49
Newark	Each	1	$ 15.55
		100	$ 11.95
		250	$ 9.92
		500	$ 8.83
		1000	$ 7.03

Description

General part information

325-019 Series

19 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
