L1CU-5770000000000

Active

Lumileds

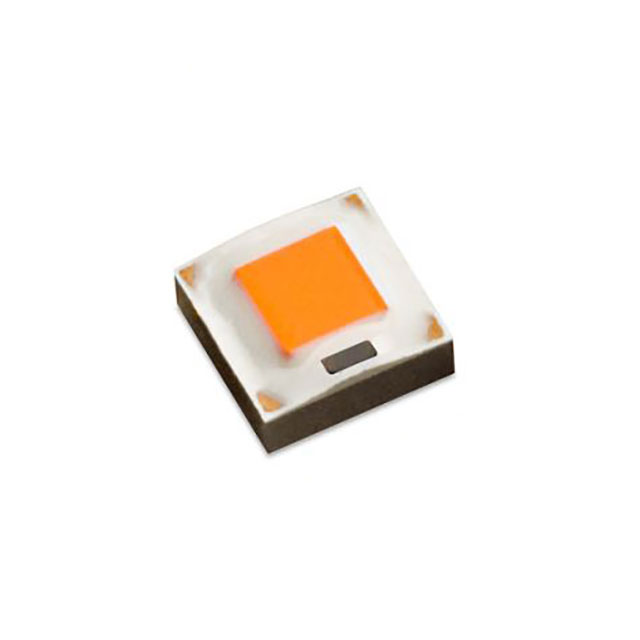

LED CHIP COOL WHITE 5700K 1225MA 3-PIN SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLUXEON CZ Brief Datasheet

L1CU-5770000000000

Active

Lumileds

LED CHIP COOL WHITE 5700K 1225MA 3-PIN SMD

Deep-Dive with AI

DocumentsLUXEON CZ Brief Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.33
		10	$ 1.68
		100	$ 1.29
		500	$ 1.12
	Digi-Reel®	1	$ 2.33
		10	$ 1.68
		100	$ 1.29
		500	$ 1.12
	Tape & Reel (TR)	1000	$ 1.06
		2000	$ 1.01
		3000	$ 0.99
		5000	$ 0.96
		7000	$ 0.95
		10000	$ 0.93

Description

General part information

L1CU Series

LED Lighting LUXEON CZ White, Cool 5700K 2.75V 350mA 120° 3-SMD, No Lead

Documents

Technical documentation and resources

LUXEON CZ Brief

Datasheet

Specification	L1CU-5770000000000	L1CU Series

CCT (K)	5700 K	2200 - 6500 K
Color	Cool, White	White, Warm, Green, Neutral, Lime, Cool, Amber, Red, Red-Orange, Blue
CRI (Color Rendering Index)	70	70 - 90
Current - Max [Max]	1.225 A	1.05 - 700 mA
Current - Test	350 mA	350 mA
Flux @ 85°C, Current - Test	110 lm	74 - 110 lm
Height - Seated (Max) [Max] [z]	0.92 mm	0.92 mm
Height - Seated (Max) [Max] [z]	0.036 in	0.036 in
Lumens/Watt @ Current - Test	133 lm/W	22 - 133 lm/W
Luminous Flux @ Current/Temperature	-	16 - 260 lm
Luminous Flux @ Current/Temperature	-	280 mW
Luminous Flux @ Current/Temperature	-	150 mW
Mounting Type	Surface Mount	Surface Mount
Package / Case	3-SMD, No Lead	2-SMD, No Lead Exposed Pad, 3-SMD, No Lead
Size / Dimension [x]	2 mm	2 mm
Size / Dimension [x]	0.079 in	0.079 in
Size / Dimension [y]	2 mm	2 mm
Size / Dimension [y]	0.079 in	0.079 in
Supplier Device Package	3-SMD	2-SMD, 3-SMD, SMD
Temperature - Test	-	85 °C
Thermal Resistance of Package	3.2 °C/W	3.2 °C/W
Thermal Resistance of Package	-	4 °C/W
Viewing Angle	120 °	120 - 123 °
Voltage - Forward (Vf) (Typ)	2.75 V	1.9 - 3.08 V
Wavelength	-	540 - 624 nm
Wavelength	-	520 - 614 nm
Wavelength	-	530 - 619 nm

Part

Supplier Device Package

Package / Case

CRI (Color Rendering Index)

Color

Current - Max [Max]

CCT (K)

Current - Test

Lumens/Watt @ Current - Test

Flux @ 85°C, Current - Test

Size / Dimension [y]

Size / Dimension [x]

Size / Dimension [y]

Size / Dimension [x]

Mounting Type

Height - Seated (Max) [Max] [z]

Voltage - Forward (Vf) (Typ)

Viewing Angle

Thermal Resistance of Package

Temperature - Test

Luminous Flux @ Current/Temperature

Thermal Resistance of Package [custom]

Wavelength [Max]

Wavelength [Min]

Wavelength

Luminous Flux @ Current/Temperature [Max]

Luminous Flux @ Current/Temperature [Min]

Lumileds

L1CU-2790000000000

2-SMD

2-SMD, No Lead Exposed Pad

Warm, White

1.225 mA

2700 K

350 mA

77 lm/W

74 lm

2 mm

0.079 in

Surface Mount

0.92 mm

0.036 in

2.75 V

120 °

3.2 °C/W

Lumileds

L1CU-GRN1000000000

3-SMD

3-SMD, No Lead

Green

1.05 A

350 mA

93 lm/W

2 mm

0.079 in

Surface Mount

0.92 mm

0.036 in

3.05 V

120 °

85 °C

99 lm

4 °C/W

540 nm

520 nm

530 nm

Lumileds

L1CU-3580000000000

2-SMD

2-SMD, No Lead Exposed Pad

Warm, White

1.225 mA

3500 K

350 mA

110 lm/W

106 lm

2 mm

0.079 in

Surface Mount

0.92 mm

0.036 in

2.75 V

120 °

3.2 °C/W

Lumileds

L1CU-4090000000000

2-SMD

2-SMD, No Lead Exposed Pad

Neutral, White

1.225 mA

4000 K

350 mA

92 lm/W

89 lm

2 mm

0.079 in

Surface Mount

0.92 mm

0.036 in

2.75 V

120 °

3.2 °C/W

Lumileds

L1CU-LME1000000000

3-SMD

3-SMD, No Lead

Lime

1.05 A

350 mA

2 mm

0.079 in

Surface Mount

0.92 mm

0.036 in

120 °

85 °C

122 lm

Lumileds

L1CU-6570000000000

3-SMD

3-SMD, No Lead

Cool, White

1.225 A

6500 K

350 mA

2 mm

0.079 in

Surface Mount

0.92 mm

0.036 in

2.75 V

120 °

Lumileds

L1CU-AMB1000000000

2-SMD

2-SMD, No Lead Exposed Pad

Amber

1.05 A

350 mA

22 lm/W

2 mm

0.079 in

Surface Mount

0.92 mm

0.036 in

2.05 V

120 °

85 °C

16 lm

593 nm

Lumileds

L1CU-2280000000000

2-SMD

2-SMD, No Lead Exposed Pad

Warm, White

1.225 mA

2200 K

350 mA

92 lm/W

89 lm

2 mm

0.079 in

Surface Mount

0.92 mm

0.036 in

2.75 V

120 °

3.2 °C/W

Lumileds

L1CU-DRD1000000000

2-SMD

2-SMD, No Lead Exposed Pad

Red

700 mA

350 mA

2 mm

0.079 in

Surface Mount

0.92 mm

0.036 in

2.05 V

120 °

85 °C

260 mW

Lumileds

L1CU-RNG1000000000

SMD

2-SMD, No Lead Exposed Pad

Red-Orange

1.05 A

350 mA

47 lm/W

2 mm

0.079 in

Surface Mount

0.92 mm

0.036 in

2.05 V

120 °

85 °C

34 lm

624 nm

614 nm

619 nm

Part	Supplier Device Package	Package / Case	CRI (Color Rendering Index)	Color	Current - Max [Max]	CCT (K)	Current - Test	Lumens/Watt @ Current - Test	Flux @ 85°C, Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Thermal Resistance of Package	Temperature - Test	Luminous Flux @ Current/Temperature	Thermal Resistance of Package [custom]	Wavelength [Max]	Wavelength [Min]	Wavelength
Lumileds L1CU-2790000000000	2-SMD	2-SMD, No Lead Exposed Pad	90	Warm, White	1.225 mA	2700 K	350 mA	77 lm/W	74 lm	2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.75 V	120 °	3.2 °C/W
Lumileds L1CU-GRN1000000000	3-SMD	3-SMD, No Lead		Green	1.05 A		350 mA	93 lm/W		2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	3.05 V	120 °		85 °C	99 lm	4 °C/W	540 nm	520 nm	530 nm
Lumileds L1CU-3580000000000	2-SMD	2-SMD, No Lead Exposed Pad	80	Warm, White	1.225 mA	3500 K	350 mA	110 lm/W	106 lm	2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.75 V	120 °	3.2 °C/W
Lumileds L1CU-4090000000000	2-SMD	2-SMD, No Lead Exposed Pad	90	Neutral, White	1.225 mA	4000 K	350 mA	92 lm/W	89 lm	2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.75 V	120 °	3.2 °C/W
Lumileds L1CU-LME1000000000	3-SMD	3-SMD, No Lead		Lime	1.05 A		350 mA			2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in		120 °		85 °C	122 lm
Lumileds L1CU-6570000000000	3-SMD	3-SMD, No Lead	70	Cool, White	1.225 A	6500 K	350 mA			2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.75 V	120 °
Lumileds L1CU-AMB1000000000	2-SMD	2-SMD, No Lead Exposed Pad		Amber	1.05 A		350 mA	22 lm/W		2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.05 V	120 °		85 °C	16 lm				593 nm
Lumileds L1CU-2280000000000	2-SMD	2-SMD, No Lead Exposed Pad	80	Warm, White	1.225 mA	2200 K	350 mA	92 lm/W	89 lm	2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.75 V	120 °	3.2 °C/W
Lumileds L1CU-DRD1000000000	2-SMD	2-SMD, No Lead Exposed Pad		Red	700 mA		350 mA			2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.05 V	120 °		85 °C	260 mW
Lumileds L1CU-RNG1000000000	SMD	2-SMD, No Lead Exposed Pad		Red-Orange	1.05 A		350 mA	47 lm/W		2 mm	2 mm	0.079 in	0.079 in	Surface Mount	0.92 mm	0.036 in	2.05 V	120 °		85 °C	34 lm		624 nm	614 nm	619 nm

L1CU-5770000000000

Deep-Dive with AI

L1CU-5770000000000

Deep-Dive with AI

Pricing

Description

L1CU Series

Documents

LUXEON CZ Brief

Datasheet

Technical Specifications

L1CU Series
