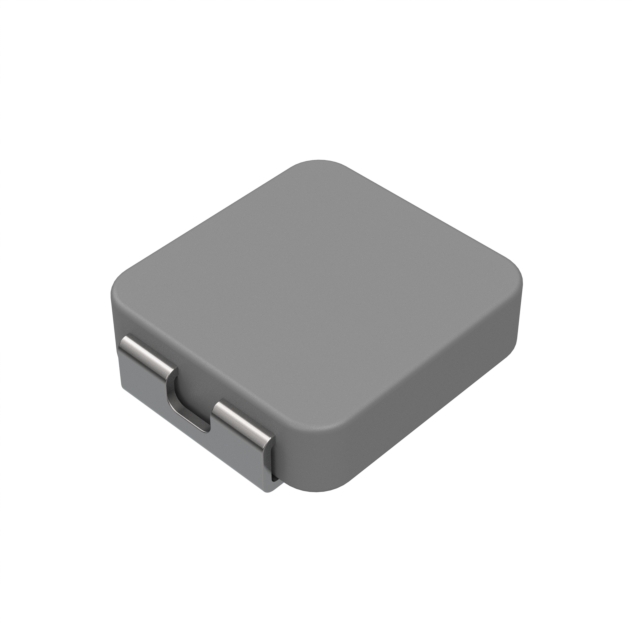

CMLB041B-1R0MS

Active

Delta Electronics/Cyntec

FIXED IND 1UH 5A 46.5 MOHM SMD

Search across all available documentation for this part.

Active

Delta Electronics/Cyntec

FIXED IND 1UH 5A 46.5 MOHM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

FIXED IND 680NH 5.5A 36MOHM SMD

Part	Tolerance	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Mounting Type	Material - Core	Current - Saturation (Isat)
Delta Electronics/Cyntec CMLB041B-R68MS	20 %	0.68 µH	-55 °C	125 °C	36 mOhm	100 kHz	0.165 in	4.4 mm	4.2 mm	0.173 in	5.5 Amps	Nonstandard	1.2 mm	0.047 in	Shielded	Surface Mount	Metal	6.5 A
Delta Electronics/Cyntec CMLB041B-1R0MS	20 %	1 µH	-55 °C	125 °C	46.5 mOhm	100 kHz	0.165 in	4.4 mm	4.2 mm	0.173 in	5 A	Nonstandard	1.2 mm	0.047 in	Shielded	Surface Mount	Metal	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.64

General part information

1 µH Shielded Inductor 5 A 46.5mOhm Max Nonstandard
