ZIO-101899

Active

Smart Prototyping

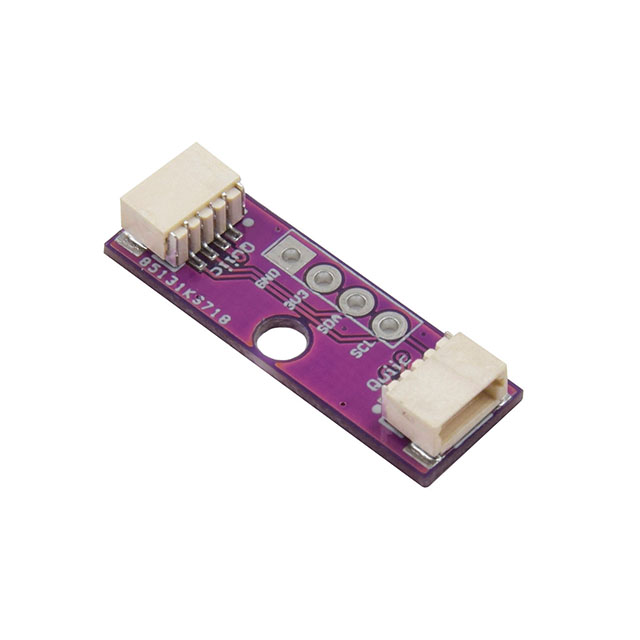

ZIO QWIIC ADAPTER 4P HEADER

Search across all available documentation for this part.

Active

Smart Prototyping

ZIO QWIIC ADAPTER 4P HEADER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ZIO QWIIC ADAPTER 4P HEADER

Technical documentation and resources

Specification	ZIO-101899	ZIO-10 Series

Board Thickness	0.062 in	0.062 in
Board Thickness	0.0625 in	0.0625 in
Board Thickness	1.57 mm	1.57 mm
Material	FR4 Epoxy Glass	FR4 Epoxy Glass
Number of Positions	4	4
Package Accepted	2.54mm Header	2.54mm Header
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Proto Board Type	Connector to DIP	Qwiic Connectors, Connector to DIP
Size / Dimension [x]	1 in	1 - 1.18 "
Size / Dimension [x]	25.4 mm	25.4 - 30.1 mm
Size / Dimension [y]	0.34 in	0.34 - 0.47 "
Size / Dimension [y]	8.6 mm	8.6 - 12 mm

Part	Board Thickness	Board Thickness	Board Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material	Proto Board Type	Package Accepted	Number of Positions	Pitch [x]	Pitch [x]
Smart Prototyping ZIO-101898	0.062 in	0.0625 in	1.57 mm	30.1 mm	0.47 "	1.18 "	12 mm	FR4 Epoxy Glass	Qwiic Connectors
Smart Prototyping ZIO-101899	0.062 in	0.0625 in	1.57 mm	25.4 mm	0.34 in	1 in	8.6 mm	FR4 Epoxy Glass	Connector to DIP	2.54mm Header	4	2.54 mm	0.1 in
