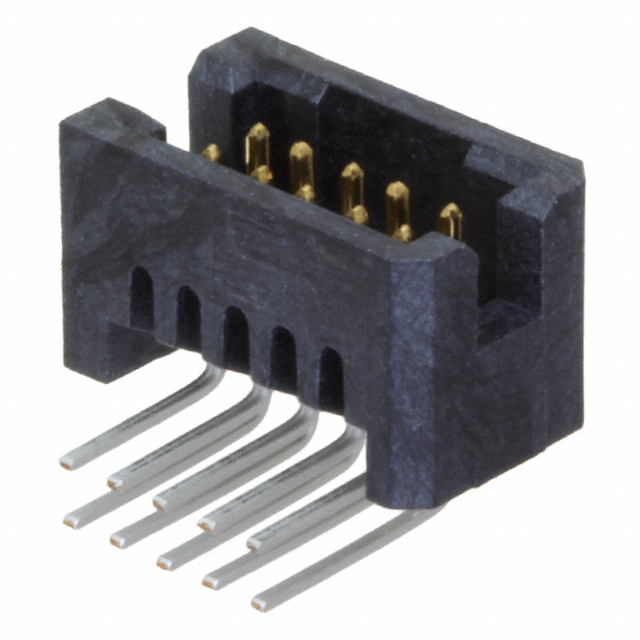

TFML-105-01-L-D-RA

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 10 POS 1.27MM SOLDER RA SIDE ENTRY THRU-HOLE TIGER EYE™ TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Tiger Eye™ High-Reliability Locking Terminal Strip, 0.050" Pitch +1

TFML-105-01-L-D-RA

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 10 POS 1.27MM SOLDER RA SIDE ENTRY THRU-HOLE TIGER EYE™ TUBE

Deep-Dive with AI

DocumentsDatasheet Tiger Eye™ High-Reliability Locking Terminal Strip, 0.050" Pitch +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFML-105-01-L-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Mating	0.134 "
Contact Length - Mating	3.39 mm
Contact Length - Post	1.91 mm
Contact Length - Post [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Height	0.225 in
Insulation Height	5.72 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

TFML-105 Series

Part	Material Flammability Rating	Style	Insulation Material	Contact Material	Termination	Insulation Height	Insulation Height	Shrouding	Contact Length - Post [x]	Contact Length - Post	Features	Mounting Type	Number of Positions	Fastening Type	Insulation Color	Contact Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Contact Shape	Contact Finish - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TFML-105-01-L-D-K	UL94 V-0	Board to Board Cable	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Solder	5.6 mm	0.22 in	Shrouded - 4 Wall	0.075 in	1.91 mm	Pick and Place	Through Hole	10	Friction Lock	Black	Male Pin	0.134 "	3.39 mm	Tin	Square	Gold	All	0.05 in	1.27 mm	2	0.05 in	1.27 mm	Header	15 µin	0.38 µm	-55 °C	125 °C
Samtec Inc. TFML-105-02-F-D-A-K-TR	UL94 V-0	Board to Board Cable	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Solder	5.6 mm	0.22 in	Shrouded - 4 Wall			Board Guide Pick and Place	Surface Mount	10	Friction Lock	Black	Male Pin	0.134 "	3.39 mm	Tin	Square	Gold	All	0.05 in	1.27 mm	2	0.05 in	1.27 mm	Header	3 µin	0.076 µm	-55 °C	125 °C
Samtec Inc. TFML-105-02-H-D-SN	UL94 V-0	Board to Board Cable	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Solder	5.6 mm	0.22 in	Shrouded - 4 Wall			Solder Retention	Surface Mount	10	Friction Lock	Black	Male Pin	0.134 "	3.39 mm	Gold	Square	Gold	All	0.05 in	1.27 mm	2	0.05 in	1.27 mm	Header	30 Áin	0.76 Ám	-55 °C	125 °C	3 µin	0.076 µm
Samtec Inc. TFML-105-01-H-D	UL94 V-0	Board to Board Cable	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Solder	5.6 mm	0.22 in	Shrouded - 4 Wall	0.075 in	1.91 mm		Through Hole	10	Friction Lock	Black	Male Pin	0.134 "	3.39 mm	Gold	Square	Gold	All	0.05 in	1.27 mm	2	0.05 in	1.27 mm	Header	30 Áin	0.76 Ám	-55 °C	125 °C	3 µin	0.076 µm
Samtec Inc. TFML-05-D
Samtec Inc. TFML-105-02-S-D-LC-P-TR	UL94 V-0	Board to Board Cable	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Solder	5.6 mm	0.22 in	Shrouded - 4 Wall			Board Lock Pick and Place	Surface Mount	10	Friction Lock	Black	Male Pin	0.134 "	3.39 mm	Tin	Square	Gold	All	0.05 in	1.27 mm	2	0.05 in	1.27 mm	Header	30 Áin	0.76 Ám	-55 °C	125 °C
Samtec Inc. TFML-105-01-L-D-RA	UL94 V-0	Board to Board Cable	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Solder	5.72 mm	0.225 in	Shrouded - 4 Wall	0.075 in	1.91 mm		Through Hole Right Angle	10	Friction Lock	Black	Male Pin	0.134 "	3.39 mm	Tin	Square	Gold	All	0.05 in	1.27 mm	2	0.05 in	1.27 mm	Header	15 µin	0.38 µm	-55 °C	125 °C
Samtec Inc. TFML-105-02-L-D-SN-K	UL94 V-0	Board to Board Cable	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Solder	5.6 mm	0.22 in	Shrouded - 4 Wall			Pick and Place Solder Retention	Surface Mount	10	Friction Lock	Black	Male Pin	0.134 "	3.39 mm	Tin	Square	Gold	All	0.05 in	1.27 mm	2	0.05 in	1.27 mm	Header	15 µin	0.38 µm	-55 °C	125 °C
Samtec Inc. TFML-105-02-S-D-TR	UL94 V-0	Board to Board Cable	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Solder	5.6 mm	0.22 in	Shrouded - 4 Wall				Surface Mount	10	Friction Lock	Black	Male Pin	0.134 "	3.39 mm	Tin	Square	Gold	All	0.05 in	1.27 mm	2	0.05 in	1.27 mm	Header	30 Áin	0.76 Ám	-55 °C	125 °C
Samtec Inc. TFML-105-02-S-D-SN-K-TR	UL94 V-0	Board to Board Cable	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Solder	5.6 mm	0.22 in	Shrouded - 4 Wall			Pick and Place Solder Retention	Surface Mount	10	Friction Lock	Black	Male Pin	0.134 "	3.39 mm	Tin	Square	Gold	All	0.05 in	1.27 mm	2	0.05 in	1.27 mm	Header	30 Áin	0.76 Ám	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.15
		50	$ 1.73
		100	$ 1.45
		500	$ 1.27
		1000	$ 1.08
Digikey	Tube	1	$ 3.07
		50	$ 2.51
		100	$ 2.13
		500	$ 1.89
		1000	$ 1.76
