16280-3PG-315

Active

Conxall/Switchcraft

CONN PLUG MALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	16280-3PG-315	16280-3P Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [custom]	0.17 in, 0.15 in	0.15 - 0.17 in
Cable Opening [custom]	3.81 mm, 4.32 mm	3.81 - 4.32 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 VAC	600 VAC

CONN PLUG MALE 3POS GOLD CRIMP

Part	Color	Shielding	Applications	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Primary Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Orientation	Connector Type	Material Flammability Rating	Features	Current Rating (Amps)	Voltage Rating	Fastening Type	Backshell Material, Plating	Contact Finish - Mating	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 16280-3PG-311	Black	Unshielded	Data, Industrial, Instrumentation, Medical	Free Hanging (In-Line)	2.29 mm	0.09 in, 0.14 in	3.56 mm	Plastic	Copper Alloy	85 °C	-40 °C	Crimp	Keyed	Male Pins, Plug	UL94 HB	Backshell	7.5 A	600 VAC	Bayonet Lock	Thermoplastic	Gold	IP67 - Dust Tight, Waterproof
Conxall/Switchcraft 16280-3PG-315	Black	Unshielded	Data, Industrial, Instrumentation, Medical	Free Hanging (In-Line)				Plastic	Copper Alloy	85 °C	-40 °C	Crimp	Keyed	Male Pins, Plug	UL94 HB	Backshell	7.5 A	600 VAC	Bayonet Lock	Thermoplastic	Gold	IP67 - Dust Tight, Waterproof	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 16280-3PG-318	Black	Unshielded	Data, Industrial, Instrumentation, Medical	Free Hanging (In-Line)				Plastic	Copper Alloy	85 °C	-40 °C	Crimp	Keyed	Male Pins, Plug	UL94 HB	Backshell	7.5 A	600 VAC	Bayonet Lock	Thermoplastic	Gold	IP67 - Dust Tight, Waterproof			4.57 mm	0.18 in	0.2 in	5.08 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

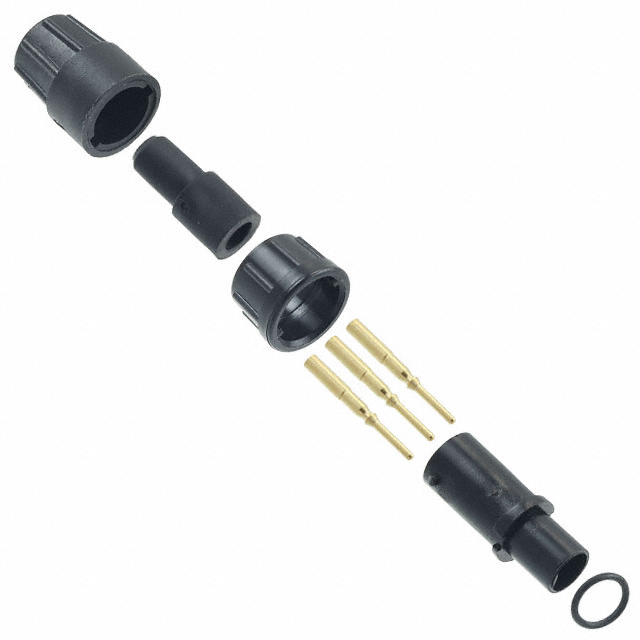

3 Position Circular Connector Plug, Male Pins Crimp
