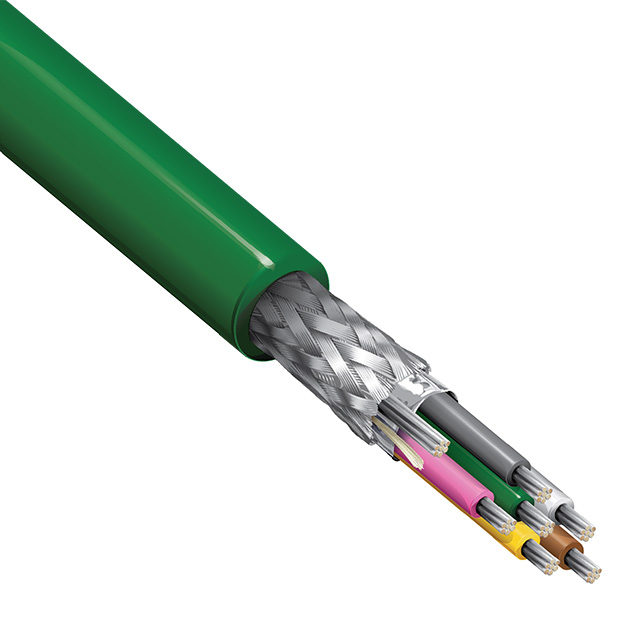

3120A G7W1000

Active

Belden Inc.

MULTI-PAIR 6COND 24AWG GRN

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 24AWG GRN

Technical Specifications

Parameters and characteristics for this part

Specification	3120A G7W1000

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.277 in
Jacket (Insulation) Diameter [diameter]	7.04 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Green
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Features	Jacket Color	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Material	Wire Gauge	Number of Conductors
Belden Inc. 3120A G7W1000	Polyethylene (PE)	-40 °C	80 C	1000 ft	304.8 m	90 % 100 %	32 AWG	7	Copper Tinned	Drain Wire	Green	Braid Foil	0.277 in	7.04 mm	Aluminum Copper Tinned	300 V	0.889 mm	0.035 in	Multi-Pair	Polyurethane (PU)	24 AWG	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.36

General part information

6 (3 Pair) Conductor Multi-Pair Cable Green 24 AWG Foil, Braid 1000.0' (304.8m)
