Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 3.42 | |
| 3 | $ 3.18 | |||
| 5 | $ 3.06 | |||
| 7 | $ 2.98 | |||
| 10 | $ 2.92 | |||
| 25 | $ 2.74 | |||
| 50 | $ 2.60 | |||
| 100 | $ 2.48 | |||
| Spool | 1640 | $ 1.52 | ||
| 3280 | $ 1.43 | |||
General part information

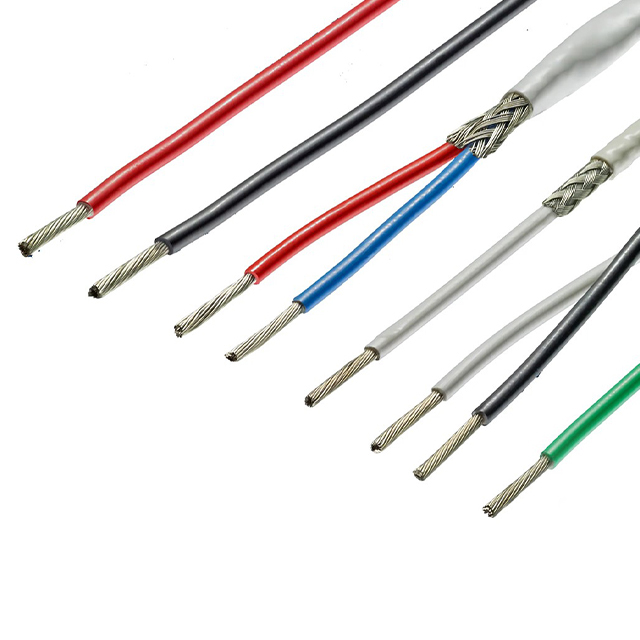

14 AWG Hook-Up, Dual Wall Wire 37/0.0098" Blue 1300V 1640.4' (500.0m)
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 9437153001 | 100G0111 Series |
|---|---|---|
| Cable Type | Hook-Up, Dual Wall | Hook-Up, Dual Wall |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand | - | 19 - 37 Strands |
| Conductor Strand | - | 0.0079 " |
| Conductor Strand [custom] | 37 | 37 |
| Conductor Strand [diameter] | 0.0098 in | 0.0063 - 0.0126 in |
| Jacket (Insulation) Diameter [diameter] | 0.091 " | 0.076 - 0.109 in |
| Jacket (Insulation) Diameter [diameter] | 2.31 mm | 1.93 - 2.77 mm |
| Jacket (Insulation) Material | Polymer | Polymer |
| Jacket (Insulation) Thickness | 0.25 mm | 0.2 - 0.25 mm |
| Jacket (Insulation) Thickness | 0.01 in | 0.008 - 0.01 in |
| Jacket Color | Blue | Yellow, Blue, Black, Red |
| Length | Enter Number of Feet in Order Quantity | Enter Number of Feet in Order Quantity |
| Length | - | 3281 ft |
| Length | - | 1000 m |
| Length [x] | 500 m | 500 m |
| Length [x] | 1640.4 ft | 1640.4 ft |
| Operating Temperature | - | 125 °C |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Spool Size | 1640.4 ft | 1640.4 ft |
| Spool Size | 500 m | 500 m |
| Voltage | 1300 V | 1300 V |
| Voltage | - | 750 V |
| Voltage | - | 1300 V |
| Wire Gauge | 13.5 AWG | 12 - 22 AWG |
HOOK-UP DL STRND 22AWG YLW
| Part | Jacket (Insulation) Material | Jacket Color | Voltage [Min] | Voltage [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [diameter] | Wire Gauge | Cable Type | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Length | Length | Spool Size | Spool Size | Length [x] | Length [x] | Length | Voltage | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine 100G0111-0.40-4 | Polymer | Yellow | 750 V | 1300 V | -55 °C | 125 °C | 19 Strands | 0.0063 in | 22 AWG | Hook-Up, Dual Wall | ||||||||||||||||
TE Connectivity Aerospace, Defense and Marine 100G0111-1.50-6 | Polymer | Blue | 750 V | 1300 V | 0.0098 in | 15 AWG | Hook-Up, Dual Wall | Copper, Tinned | 0.082 in | 2.08 mm | 125 °C | 0.2 mm | 0.008 in | 37 | 3281 ft | 1000 m | ||||||||||
TE Connectivity Aerospace, Defense and Marine 9437153001 | Polymer | Blue | -55 °C | 125 °C | 0.0098 in | 13.5 AWG | Hook-Up, Dual Wall | Copper, Tinned | 0.091 " | 2.31 mm | 0.25 mm | 0.01 in | 37 | 1640.4 ft | 500 m | 500 m | 1640.4 ft | Enter Number of Feet in Order Quantity | 1300 V | |||||||
TE Connectivity Aerospace, Defense and Marine 100G0111-0.60-9 | Polymer | 750 V | 1300 V | -55 °C | 125 °C | 19 Strands | 20 AWG | Hook-Up, Dual Wall | Copper, Tinned | 0.2 mm | 0.008 in | 0.0079 " | ||||||||||||||
TE Connectivity Aerospace, Defense and Marine 100G0111-2.00-0 | Polymer | Black | 750 V | 1300 V | -55 °C | 125 °C | 0.0098 in | 13.5 AWG | Hook-Up, Dual Wall | Copper, Tinned | 0.093 in | 2.36 mm | 0.2 mm | 0.008 in | 37 | |||||||||||
TE Connectivity Aerospace, Defense and Marine 100G0111-3.00-6 | Polymer | Blue | 750 V | 1300 V | -55 °C | 125 °C | 37 | 0.0126 in | 12 AWG | Hook-Up, Dual Wall | Copper, Tinned | 0.109 " | 2.77 mm | 0.25 mm | 0.01 in | |||||||||||
TE Connectivity Aerospace, Defense and Marine 100G0111-1.20-2 | Polymer | Red | 750 V | 1300 V | -55 °C | 125 °C | 19 Strands | 0.0114 in | 16 AWG | Hook-Up, Dual Wall | Copper, Tinned | 0.076 in | 1.93 mm | 0.2 mm | 0.008 in |
