C4AQCLW5300A38K

Active

KEMET

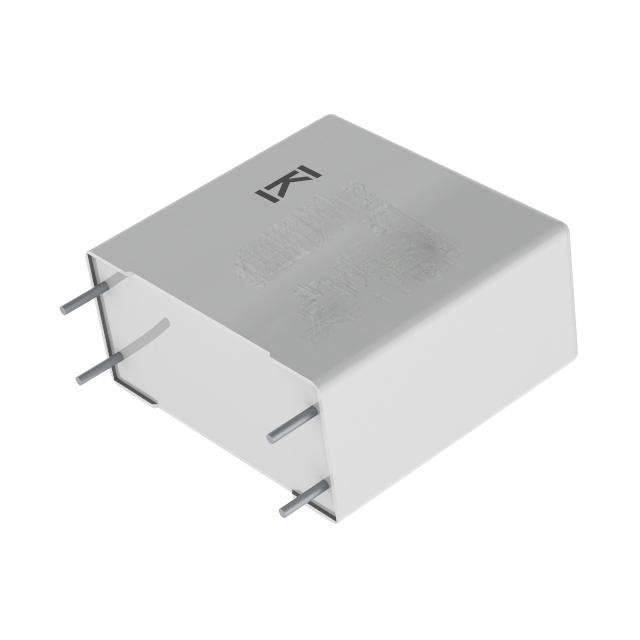

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - 4 PIN, 30 ΜF, ± 10%, DC LINK, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC4AQCLW5300A38K Spec KEM_F3114_C4AQ.pdf +4

C4AQCLW5300A38K

Active

KEMET

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - 4 PIN, 30 ΜF, ± 10%, DC LINK, THROUGH HOLE

Deep-Dive with AI

DocumentsC4AQCLW5300A38K Spec KEM_F3114_C4AQ.pdf +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4AQCLW5300A38K

Applications	Automotive, DC Link, DC Filtering
Capacitance	30 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	3.6 mOhms
Height - Seated (Max) [Max] [z]	0.992 in
Height - Seated (Max) [Max] [z]	25.2 mm
Lead Spacing	37.5 mm
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial - 4 Leads
Ratings	AEC-Q200
Size / Dimension [x]	1.654 in
Size / Dimension [x]	42 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - DC	650 V

C4AQCL Series

Part	Mounting Type	Ratings	Termination	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Capacitance	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
KEMET C4AQCLU5100A19J	Through Hole	AEC-Q200	PC Pins	650 V	105 ░C	-55 °C	Automotive DC Filtering DC Link	10 µF	6.4 mOhms	27.5 mm	1.083 in	5 %	Radial	0.756 in	19.2 mm	Metallized Polypropylene (PP)
KEMET C4AQCLW5100A33J	Through Hole	AEC-Q200	PC Pins	650 V	105 ░C	-55 °C	Automotive DC Filtering DC Link	10 µF	10.4 mOhms	37.5 mm	1.476 in	5 %	Radial - 4 Leads	0.756 in	19.2 mm	Metallized Polypropylene (PP)	24 mm	41.5 mm	0.945 in	1.634 "
KEMET C4AQCLU4500A12J	Through Hole	AEC-Q200	PC Pins	650 V	105 ░C	-55 °C	Automotive DC Filtering DC Link	5 µF	11.5 mOhms	27.5 mm	1.083 in	5 %	Radial	0.598 in	15.2 mm	Metallized Polypropylene (PP)	24 mm	32 mm	0.945 in	1.26 in
KEMET C4AQCLW5300A38K	Through Hole	AEC-Q200	PC Pins	650 V	105 ░C	-55 °C	Automotive DC Filtering DC Link	30 µF	3.6 mOhms	37.5 mm	1.476 in	10 %	Radial - 4 Leads	0.992 in	25.2 mm	Metallized Polypropylene (PP)	43 mm	42 mm	1.693 in	1.654 in
KEMET C4AQCLU4330A11J	Through Hole	AEC-Q200	PC Pins	650 V	105 ░C	-55 °C	Automotive DC Filtering DC Link	3.3 µF	16.8 mOhms	27.5 mm	1.083 in	5 %	Radial	0.5 in	12.7 mm	Metallized Polypropylene (PP)	21 mm	32 mm	0.827 in	1.26 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.90
		48	$ 6.14
		96	$ 5.34
		528	$ 4.83
		1008	$ 4.48
Newark	Each	1	$ 10.10
		10	$ 6.10
		25	$ 5.90
		50	$ 5.69
		100	$ 5.47

Description

General part information

C4AQCL Series

C4AQ series printed circuit board mount radial leaded power film capacitors are suitable for DC Link (automotive grade). C4AQ series is a polypropylene metallized film capacitor with a rectangular, plastic box-type design filled with resin and uses 2 or 4 tinned wires. Typical applications include DC filtering, DC link, power electronics, energy storage, renewable energy grid interface, motor drives and automotive applications.
