TMCS-28-10K-KIT
ActiveAnalog Devices Inc./Maxim Integrated

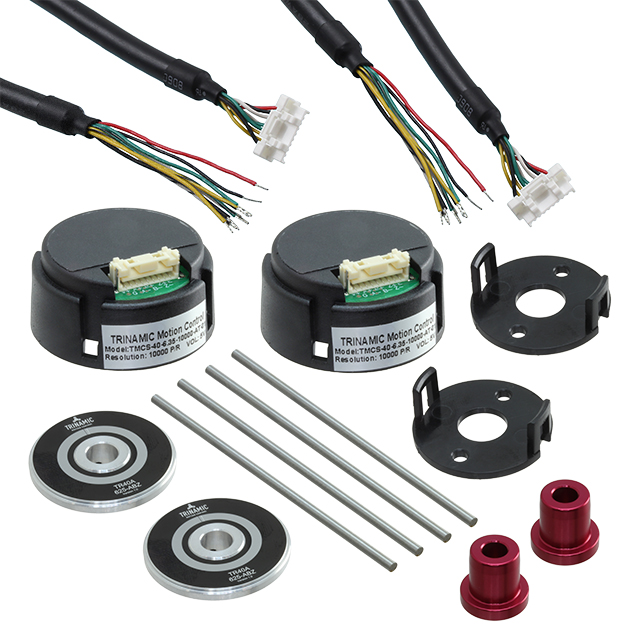

ROTARY ENCODER OPTICAL 10000PPR
Deep-Dive with AI
Search across all available documentation for this part.
TMCS-28-10K-KIT
ActiveAnalog Devices Inc./Maxim Integrated
ROTARY ENCODER OPTICAL 10000PPR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCS-28-10K-KIT | TMCS-28 Series |
|---|---|---|
| Actuator Type | Shaft | Shaft, Hole for Shaft |
| Built in Switch | False | False |
| Detent | False | False |
| Encoder Type | Optical | Optical |
| Mounting Type | Chassis Mount | Chassis Mount |
| Orientation | Vertical | Vertical, Right Angle |
| Output Type | TTL | TTL |
| Pulses per Revolution | 10000 per Revolution | 1024 - 10000 per Revolution |
| Termination Style | Pin Header | Pin Header |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 206.94 | |
| 5 | $ 177.60 | |||
| 10 | $ 166.20 | |||
| 25 | $ 152.16 | |||
| 50 | $ 143.91 | |||
TMCS-28 Series
ROTARY ENCODER OPTICAL 10000PPR
| Part | Mounting Type | Orientation | Detent | Output Type | Encoder Type | Built in Switch | Actuator Type | Termination Style | Voltage - Supply [Min] | Voltage - Supply [Max] | Pulses per Revolution |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCS-28-5-10000-AT-01 | Chassis Mount | Vertical | TTL | Optical | Shaft | Pin Header | 4.5 V | 5.5 V | 10000 per Revolution | ||
Analog Devices Inc./Maxim Integrated TMCS-28-1K-KIT | Right Angle | TTL | Optical | Hole for Shaft | Pin Header | 4.5 V | 5.5 V | 1024 | |||
Analog Devices Inc./Maxim Integrated TMCS-28-10K-KIT | Chassis Mount | Vertical | TTL | Optical | Shaft | Pin Header | 4.5 V | 5.5 V | 10000 per Revolution |
