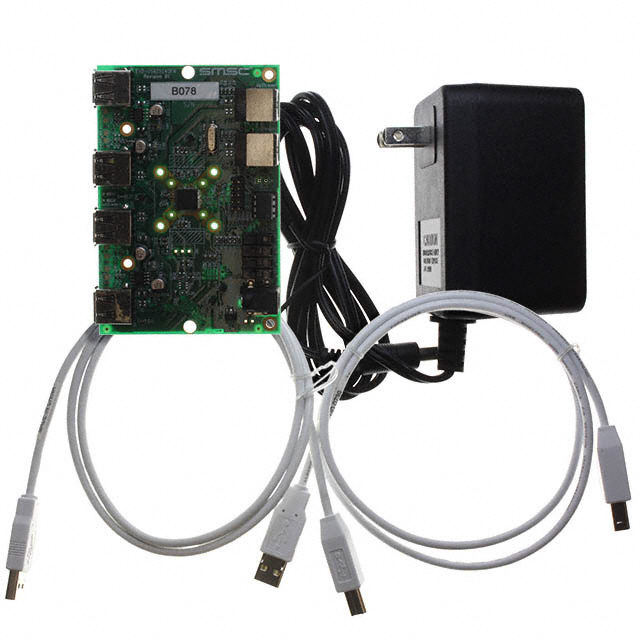

EVB-USB2524

Active

Microchip Technology

BOARD EVAL USB2524 SHARE/SWITCH

Search across all available documentation for this part.

Active

Microchip Technology

BOARD EVAL USB2524 SHARE/SWITCH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EVB-USB2524	USB2524 Series

	-	-
Embedded	False	False
Function	USB 2.0 Hub	USB 2.0 Hub, Hub Controller
Interface	-	USB
Operating Temperature	-	70 °C
Operating Temperature	-	0 °C
Package / Case	-	56-VFQFN Exposed Pad
Primary Attributes	4-Channel (Quad)	4-Channel (Quad)
Protocol	-	USB
Secondary Attributes	Multi-TT Enabled, Overcurrent Protection, Port Power Switching	Multi-TT Enabled, Overcurrent Protection, Port Power Switching
Standards	-	USB 2.0
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	56-QFN-EP (8x8)
Type	Interface	Interface
Utilized IC / Part	USB2524	USB2524
Voltage - Supply	-	3.6 V
Voltage - Supply	-	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

BOARD EVAL USB2524 SHARE/SWITCH

Part	Type	Secondary Attributes	Utilized IC / Part	Primary Attributes	Function	Supplied Contents	Protocol	Interface	Package / Case	Supplier Device Package	Standards	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]
Microchip Technology EVB-USB2524	Interface	Multi-TT Enabled, Overcurrent Protection, Port Power Switching	USB2524	4-Channel (Quad)	USB 2.0 Hub	Board(s)
Microchip Technology USB2524-ABZJ
Microchip Technology USB2524-ABZJ
Microchip Technology USB2524-ABZJ					Hub Controller		USB	USB	56-VFQFN Exposed Pad	56-QFN-EP (8x8)	USB 2.0	3.6 V	3 V	70 °C	0 °C

General part information

USB2524 USB 2.0 Hub Interface Evaluation Board

Technical documentation and resources
