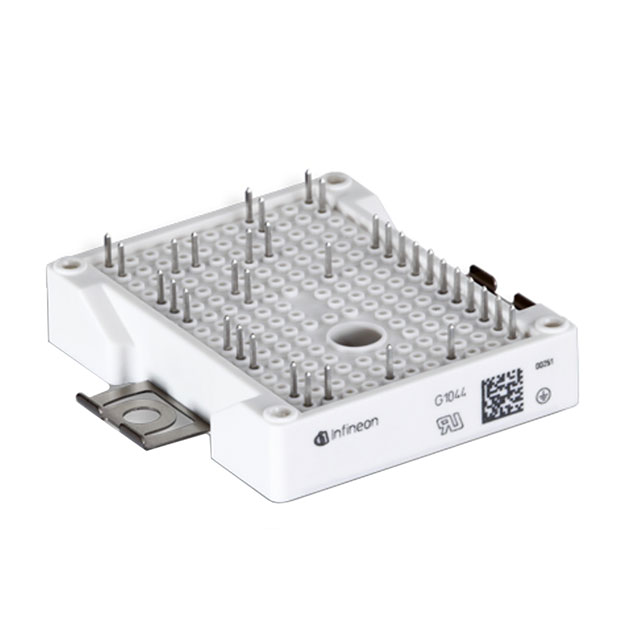

FP35R12W2T4BOMA1

Active

Infineon Technologies

THE FP35R12W2T4 IS A PIM IGBT4 - T4 MODULE IN A EASYPIM™ 2B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 35 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMCDS - Easy2B Soldering of Econo and Easy Modules +2

FP35R12W2T4BOMA1

Active

Infineon Technologies

THE FP35R12W2T4 IS A PIM IGBT4 - T4 MODULE IN A EASYPIM™ 2B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 35 A.

Deep-Dive with AI

DocumentsMCDS - Easy2B Soldering of Econo and Easy Modules +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FP35R12W2T4BOMA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max)	54 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	2 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	215 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.25 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FP35R12 Series

Part	Current - Collector Cutoff (Max) [Max]	Package / Case	Input	Mounting Type	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max) [Max]	Configuration	IGBT Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Input Capacitance (Cies) @ Vce	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Power - Max [Max]	Current - Collector (Ic) (Max)
Infineon Technologies FP35R12W2T7B11BOMA1	5.8 µA	Module	Three Phase Bridge Rectifier	Chassis Mount	1.6 V	35 A	Three Phase Inverter	Trench Field Stop	1200 V	6.62 nF	-40 C	175 °C	AG-EASY2B-2	20 mW
Infineon Technologies FP35R12W2T4BOMA1	1 mA	Module	Standard	Chassis Mount	2.25 V		Three Phase Inverter	Trench Field Stop	1200 V	2 nF			Module	215 W	54 A
Infineon Technologies FP35R12KT4B11BOSA1	1 mA	Module	Standard	Chassis Mount	2.15 V	35 A	Three Phase Inverter	Trench Field Stop	1200 V	2 nF			Module	210 W
Infineon Technologies FP35R12KT4BPSA1	1 mA	Module	Three Phase Bridge Rectifier	Chassis Mount	2.25 V	25 A	Three Phase Inverter	Trench Field Stop	1200 V	2 nF	-40 °C	150 °C	AG-ECONO2-8	210 W
Infineon Technologies FP35R12W2T4PBPSA1	1 mA	Module	Three Phase Bridge Rectifier	Chassis Mount	2.25 V	70 A	Three Phase Inverter	Trench Field Stop	1200 V	2 nF			Module	20 mW
Infineon Technologies FP35R12N2T7BPSA2	7 µA	Module	Three Phase Bridge Rectifier	Chassis Mount	1.6 V	35 A	Three Phase Inverter	Trench Field Stop	1200 V	6.62 nF	-40 C	175 °C	AG-ECONO2B	20 mW
Infineon Technologies FP35R12KT4B16BOSA1	1 mA	Module	Three Phase Bridge Rectifier	Chassis Mount	2.25 V	70 A	Three Phase Inverter	Trench Field Stop	1200 V	2 nF			Module	210 W
Infineon Technologies FP35R12N2T7BPSA1	7 µA	Module	Three Phase Bridge Rectifier	Chassis Mount	1.6 V	35 A	Three Phase Inverter	Trench Field Stop	1200 V	6.62 nF	-40 C	175 °C	AG-ECONO2B	20 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 63.73
		15	$ 57.93
		30	$ 56.00
		90	$ 52.14

Description

General part information

FP35R12 Series

EasyPIM™ 2B1200 V, 35 AIGBT modulewith fast TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode and NTC. Also available withThermal Interface Materialand as variation with PressFIT mounting technology:FP35R12W2T4_B11

Documents

Technical documentation and resources

FP35R12W2T4BOMA1

Deep-Dive with AI

FP35R12W2T4BOMA1

Deep-Dive with AI

Technical Specifications

FP35R12 Series

Pricing

Description

FP35R12 Series

Documents

MCDS - Easy2B

Soldering of Econo and Easy Modules

FP35R12W2T4 (english/german)

Datasheet

FP35R12 Series
