122500RP

Active

Amphenol RF

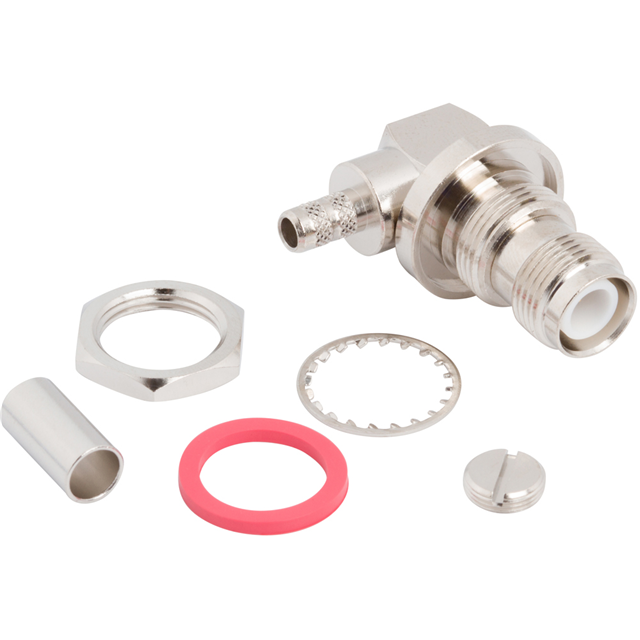

CONN RPTNC JACK R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN RPTNC JACK R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	122500RP

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Lockwasher, 1 Gasket, 1 End Cap, 1 Connector
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mating Cycles	Mounting Type	Body Material	Dielectric Material	Impedance	Connector Style	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Center Contact Material	Includes	Mounting Feature	Center Contact Plating	Shield Termination	Housing Color	Contact Termination	Body Finish	Voltage Rating	Frequency - Max [Max]	Cable Group
Amphenol RF 122500RP	500	Panel Mount Right Angle	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	RP-TNC	1	-65 ░C	165 °C	Jack Male Pin	Brass	1 Connector 1 End Cap 1 Gasket 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut	Gold	Crimp	Silver	Solder	Nickel	500 V	11 GHz	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RP-TNC Connector Jack, Male Pin 50 Ohms Panel Mount, Right Angle Solder
