ECA-2CM221

Active

Panasonic Industrial Automation Sales

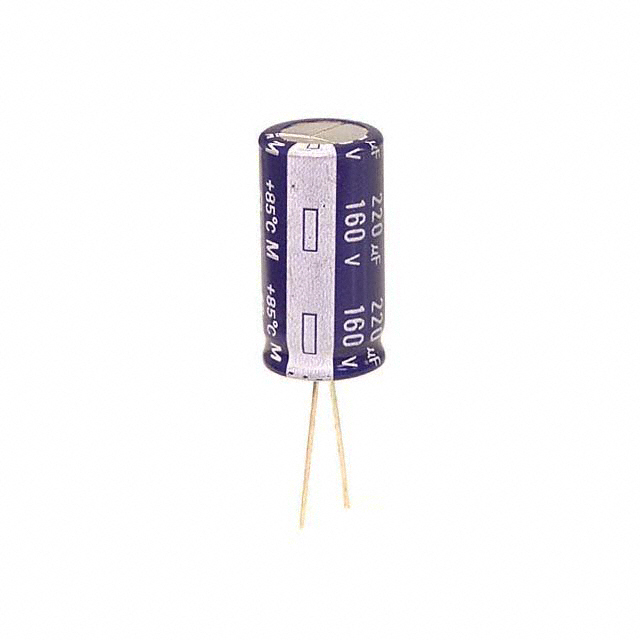

CAP ALUM 220UF 20% 160V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECA-xxM Spec Sheet

ECA-2CM221

Active

Panasonic Industrial Automation Sales

CAP ALUM 220UF 20% 160V RADIAL

Deep-Dive with AI

DocumentsDatasheet ECA-xxM Spec Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-2CM221

Applications	General Purpose
Capacitance	220 µF
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.411 A
Ripple Current @ Low Frequency	830 mA
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	160 V

ECA-2CM Series

Part	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Mounting Type	Polarization	Package / Case	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Capacitance	Ripple Current @ Low Frequency	Applications	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales ECA-2CM471	7.5 mm	0.295 in	2.448 A	Through Hole	Polar	Radial Can	2000 Hrs	42 mm	1.654 in	20 %	470 µF	1.44 A	General Purpose	160 V	-25 °C	85 °C	0.709 "	18 mm
Panasonic Industrial Automation Sales ECA-2CM220B	5 mm	0.197 in	297.5 mA	Through Hole	Polar	Radial Can	2000 Hrs			20 %	22 µF	175 mA	General Purpose	160 V	-25 °C	85 °C	0.394 in	10 mm	17 mm	0.669 in
Panasonic Industrial Automation Sales ECA-2CM010I	2.5 mm	0.098 in	61.2 mA	Through Hole	Polar	Radial Can	2000 Hrs			20 %	1 µF	36 mA	General Purpose	160 V	-25 °C	85 °C	0.248 in	6.3 mm	12.2 mm	0.48 "
Panasonic Industrial Automation Sales ECA-2CM2R2B	5 mm	0.197 in	90.1 mA	Through Hole	Polar	Radial Can	2000 Hrs			20 %	2.2 µF	53 mA	General Purpose	160 V	-25 °C	85 °C	0.248 in	6.3 mm	12.2 mm	0.48 "
Panasonic Industrial Automation Sales ECA-2CM330B	5 mm	0.197 in	399.5 mA	Through Hole	Polar	Radial Can	2000 Hrs			20 %	33 ÁF	235 mA	General Purpose	160 V	-25 °C	85 °C	0.394 in	10 mm	22 mm	0.866 in
Panasonic Industrial Automation Sales ECA-2CM2R2	2.5 mm	0.098 in	90.1 mA	Through Hole	Polar	Radial Can	2000 Hrs			20 %	2.2 µF	53 mA	General Purpose	160 V	-25 °C	85 °C	0.248 in	6.3 mm	12.2 mm	0.48 "
Panasonic Industrial Automation Sales ECA-2CM220	5 mm	0.197 in	297.5 mA	Through Hole	Polar	Radial Can	2000 Hrs			20 %	22 µF	175 mA	General Purpose	160 V	-25 °C	85 °C	0.394 in	10 mm	17 mm	0.669 in
Panasonic Industrial Automation Sales ECA-2CM2R2I	2.5 mm	0.098 in	90.1 mA	Through Hole	Polar	Radial Can	2000 Hrs			20 %	2.2 µF	53 mA	General Purpose	160 V	-25 °C	85 °C	0.248 in	6.3 mm	12.2 mm	0.48 "
Panasonic Industrial Automation Sales ECA-2CM221	7.5 mm	0.295 in	1.411 A	Through Hole	Polar	Radial Can	2000 Hrs			20 %	220 µF	830 mA	General Purpose	160 V	-25 °C	85 °C	0.63 in	16 mm
Panasonic Industrial Automation Sales ECA-2CM330	5 mm	0.197 in	399.5 mA	Through Hole	Polar	Radial Can	2000 Hrs			20 %	33 ÁF	235 mA	General Purpose	160 V	-25 °C	85 °C	0.394 in	10 mm	22 mm	0.866 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.75
		10	$ 1.31
		100	$ 0.98
		1000	$ 0.69
		5000	$ 0.62
		10000	$ 0.60

Description

General part information

ECA-2CM Series

220 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
