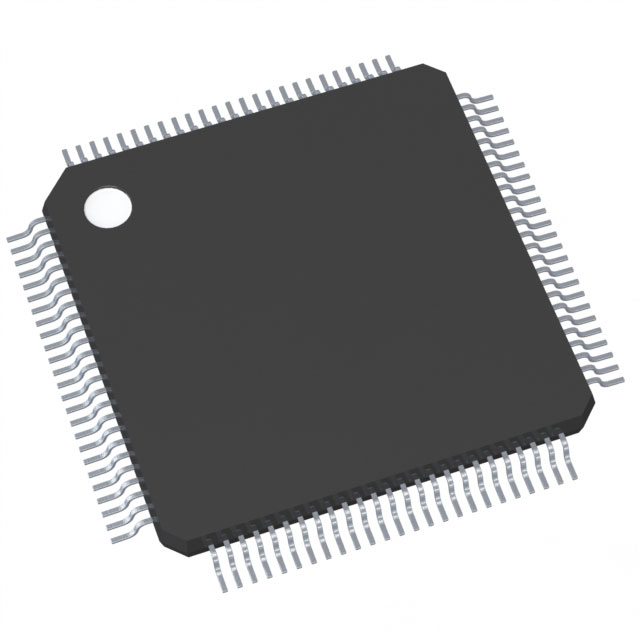

SAK-TC233LC-24F133F AB
ActiveInfineon Technologies
IC MCU 32BIT 1.5MB FLASH 100TQFP
Deep-Dive with AI
Search across all available documentation for this part.
SAK-TC233LC-24F133F AB
ActiveInfineon Technologies
IC MCU 32BIT 1.5MB FLASH 100TQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SAK-TC233LC-24F133F AB | SAK-TC233 Series |
|---|---|---|
| Connectivity [custom] | QSPI, FlexRay, CANbus, LINbus | QSPI, FlexRay, CANbus, LINbus |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Data Converters [custom] | 24 | 24 |
| Data Converters [custom] | 12 | 12 |
| EEPROM Size | 128 K | 128 K |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 78 | 78 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | External | External |
| Package / Case | 100-TQFP Exposed Pad | 100-TQFP Exposed Pad |
| Peripherals | PWM, WDT, DMA | PWM, WDT, DMA |
| Program Memory Size | 1.5 MB | 1 - 2 MB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 192 K | 192 K |
| Speed | 133 MHz | 133 - 200 MHz |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.17 V | 1.17 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
SAK-TC233 Series
IC MCU 32BIT 1MB FLASH 100TQFP
| Part | Core Size | Number of I/O | Mounting Type | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Oscillator Type | Program Memory Type | Connectivity [custom] | EEPROM Size | Package / Case | Speed | Data Converters [custom] | Data Converters [custom] | RAM Size | Program Memory Size | Operating Temperature [Min] | Operating Temperature [Max] | Peripherals |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Infineon Technologies SAK-TC233LP-16F200F AC | 32-Bit Single-Core | 78 | Surface Mount | 5.5 V | 1.17 V | External | FLASH | CANbus, FlexRay, LINbus, QSPI | 128 K | 100-TQFP Exposed Pad | 200 MHz | 24 | 12 | 192 K | 1 MB | -40 °C | 125 °C | DMA, PWM, WDT |
Infineon Technologies SAK-TC233LP-32F200N AC | 32-Bit Single-Core | 78 | Surface Mount | 5.5 V | 1.17 V | External | FLASH | CANbus, FlexRay, LINbus, QSPI | 128 K | 100-TQFP Exposed Pad | 200 MHz | 24 | 12 | 192 K | 2 MB | -40 °C | 125 °C | DMA, PWM, WDT |
Infineon Technologies SAK-TC233LP-16F200N AC | 32-Bit Single-Core | 78 | Surface Mount | 5.5 V | 1.17 V | External | FLASH | CANbus, FlexRay, LINbus, QSPI | 128 K | 100-TQFP Exposed Pad | 200 MHz | 24 | 12 | 192 K | 1 MB | -40 °C | 125 °C | DMA, PWM, WDT |
Infineon Technologies SAK-TC233LC-24F133F AB | 32-Bit Single-Core | 78 | Surface Mount | 5.5 V | 1.17 V | External | FLASH | CANbus, FlexRay, LINbus, QSPI | 128 K | 100-TQFP Exposed Pad | 133 MHz | 24 | 12 | 192 K | 1.5 MB | -40 °C | 125 °C | DMA, PWM, WDT |
Description
General part information
SAK-TC233 Series
TriCore™ - Microcontroller IC 32-Bit Single-Core 133MHz 1.5MB (1.5M x 8) FLASH PG-TQFP-100-23
Documents
Technical documentation and resources
No documents available
