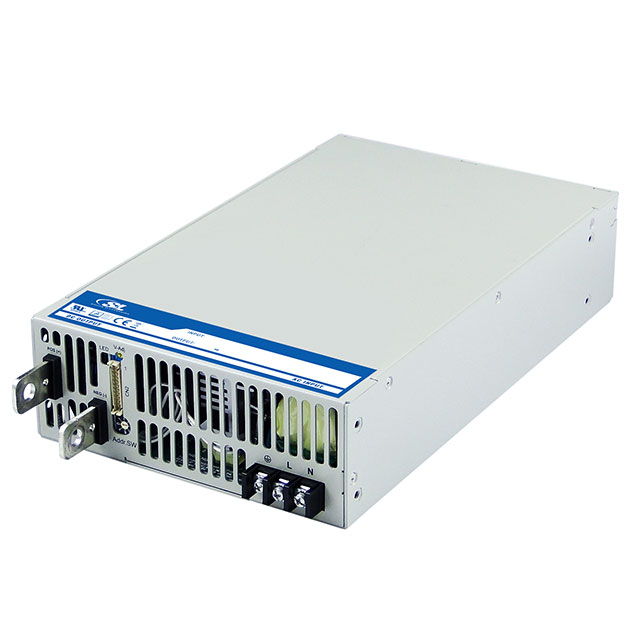

TF3000A60K

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 60V 3000W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TF3000A60K

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 60V 3000W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TF3000A60K

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	50 A
Efficiency	93 %
Features	Remote On/Off, PFC, Load Sharing, DC Input Capable, Remote Sense, Standby Output, Adjustable Output, I2C Interface
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	3000 W
Size / Dimension [x]	279.9 mm
Size / Dimension [x]	11.02 in
Size / Dimension [y]	6.69 in
Size / Dimension [y]	170 mm
Size / Dimension [z]	64 mm
Size / Dimension [z]	2.52 "
Type	Enclosed
Voltage - Input [Max]	240 VAC, 370 VDC
Voltage - Input [Min]	100 VAC, 127 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	60 V

TF3000 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Applications	Type	Features	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Current - Output 1	Voltage - Output 1	Power (Watts)	Number of Outputs	Voltage - Isolation
SL POWER / Advanced Energy TF3000A15K	60 °C	-25 °C	6.69 in	170 mm	64 mm	279.9 mm	11.02 in	2.52 "	CE cURus TUV	ITE (Commercial)	Enclosed	Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output	89 %	240 VAC 370 VDC	100 VAC 127 VDC	Chassis Mount	160 A	15 V	2400 W	1	3000 V
SL POWER / Advanced Energy TF3000A48K	60 °C	-25 °C	6.69 in	170 mm	64 mm	279.9 mm	11.02 in	2.52 "	CE cURus TUV	ITE (Commercial)	Enclosed	Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output	92 %	240 VAC 370 VDC	100 VAC 127 VDC	Chassis Mount	62.5 A	48 V	3000 W	1	3000 V
SL POWER / Advanced Energy TF3000A60K	60 °C	-25 °C	6.69 in	170 mm	64 mm	279.9 mm	11.02 in	2.52 "	CE cURus TUV	ITE (Commercial)	Enclosed	Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output	93 %	240 VAC 370 VDC	100 VAC 127 VDC	Chassis Mount	50 A	60 V	3000 W	1	3000 V
SL POWER / Advanced Energy TF3000A12K	60 °C	-25 °C	6.69 in	170 mm	64 mm	279.9 mm	11.02 in	2.52 "	CE cURus TUV	ITE (Commercial)	Enclosed	Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output	88 %	240 VAC 370 VDC	100 VAC 127 VDC	Chassis Mount	200 A	12 V	2400 W	1	3000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1018.85
		5	$ 984.89
		10	$ 950.93

Description

General part information

TF3000 Series

Enclosed AC DC Converters 1 Output 60V 100 ~ 240 VAC, 127 ~ 370 VDC Input
