050R7-102B

Active

Parlex USA LLC

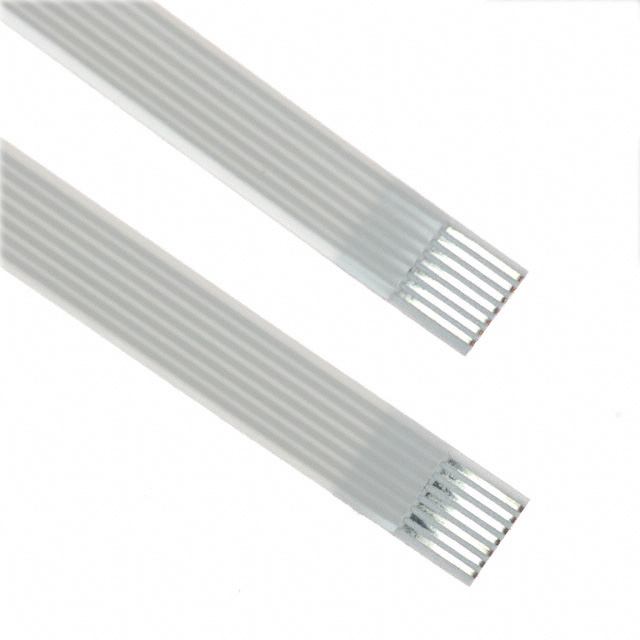

CABLE FFC/FPC 7POS 0.5MM 4"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 7POS 0.5MM 4"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	050R7-102B	050R7 Series

Cable Type	FPC, FFC	FPC, FFC
Length	4 in	2 - 5 in
Length	101.6 mm	50.8 - 127 mm
Length	-	5.984 in
Length	-	152 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	7	7
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 7POS 0.5MM 5"

Part	Length	Length	Termination Style	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Pitch [x]	Pitch [x]	Length [x]	Length [x]
Parlex USA LLC 050R7-127B	5 in	127 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC	0.14 in	3.56 mm	7	0.5 mm	0.02 in
Parlex USA LLC 050R7-51B	2 in	50.8 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC	0.14 in	3.56 mm	7	0.5 mm	0.02 in
Parlex USA LLC 050R7-152B			Backers on Both Sides, Top on Both Sides	FFC, FPC	0.14 in	3.56 mm	7	0.5 mm	0.02 in	5.984 in	152 mm
Parlex USA LLC 050R7-102B	4 in	101.6 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC	0.14 in	3.56 mm	7	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.31

General part information

7 Position FFC, FPC Cable 0.020" (0.50mm) 4.000" (101.60mm)
