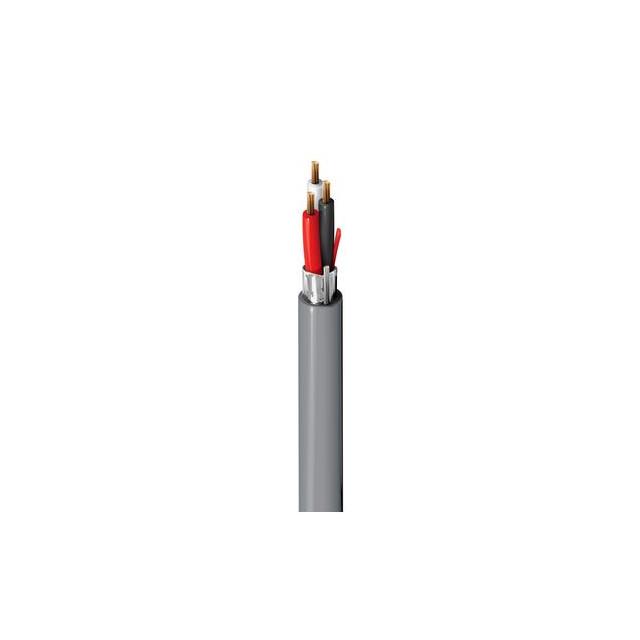

6301FE 877U1000

Active

Belden Inc.

CABLE 3COND 18AWG NATURAL

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	6301FE 877U1000

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Poly-Vinyl Chloride (LSPVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket (Insulation) Material	Wire Gauge	Length	Length	Usage	Conductor Insulation	Voltage	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Jacket Color	Shield Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Coverage	Features	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Ratings
Belden Inc. 6301FE 877U1000	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	18 AWG	1000 ft	304.8 m	Security Sound	Low Smoke Poly-Vinyl Chloride (LSPVC)	300 V	3	0.015 in	0.381 mm	Aluminum	Natural	Foil	75 ░C	0 °C	100 %	Drain Wire Rip Cord	Copper Bare	26 AWG	7	Multi-Conductor	UL Style CMP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.60

General part information

3 Conductor Multi-Conductor Cable Natural 18 AWG Foil 1000.0' (304.8m)
