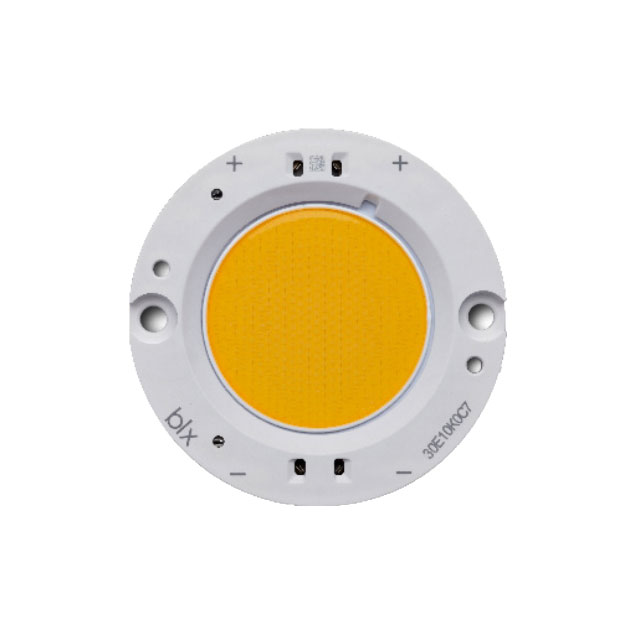

BXRC-35G10K0-C-83-SE

Active

BRIDGELUX

LED COB VERO SE 29C WH RND 3500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-35G10K0-C-83-SE

Active

BRIDGELUX

LED COB VERO SE 29C WH RND 3500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRC-35G10K0-C-83-SE	BXRC-35 Series

CCT (K)	3500 K	3000 - 3500 K
Color	White, Warm	White, Warm
Configuration	Round	Round, Starboard
CRI (Color Rendering Index)	90	80 - 93
Current - Max [Max]	4.75 A	1 - 900 A
Current - Test	1.3 A	1.05 - 900 A
Features	-	With Connector
Height [z]	3.6 mm	1.8 - 3.6 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	29.1 mm	9.9 - 29.2 mm
Lumens/Watt @ Current - Test	155 lm/W	90 - 189 lm/W
Luminous Flux @ Current/Temperature	13461 lm	807 - 19557 lm
Size / Dimension [diameter]	49.2 mm	20 - 49.2 mm
Temperature - Test	-	70 - 85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	66.7 V	25.3 - 69.4 V

BXRC-35 Series

LED COB VERO 18 ARRAY RND 3500K

...

Part	Color	CRI (Color Rendering Index)	Lens Type	Height [z]	Size / Dimension [diameter]	Type	Configuration	Viewing Angle	Luminous Flux @ Current/Temperature	Features	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [diameter]	Current - Test	Current - Max [Max]	CCT (K)	Temperature - Test
BRIDGELUX BXRC-35G4000-F-23	Warm, White	90	Flat	1.9 mm	36.2 mm	Chip On Board (COB)	Round	120 °	3655 lm	With Connector	29.5 V	118 lm/W	18.4 mm	1.05 A	2.1 A	3500 K
BRIDGELUX BXRC-35G2000-C-72-SE	Warm, White	90	Flat	3.6 mm	36.2 mm	Chip On Board (COB)	Round	120 °	2664 lm		33.9 V	125 lm/W	13.4 mm	630 mA	1.26 A	3500 K	85 °C
BRIDGELUX BXRC-35G2000-C-23	Warm, White	90	Flat	1.9 mm	36.2 mm	Chip On Board (COB)	Round	120 °	1868 lm	With Connector	32.3 V	116 lm/W	13.2 mm	500 mA	1.05 A	3500 K
BRIDGELUX BXRC-35E2000-C-83-SE	Warm, White	80	Flat	3.6 mm	36.2 mm	Chip On Board (COB)	Round	120 °	2989 lm		33.4 V	179 lm/W	13.3 mm	500 mA	1.75 A	3500 K
BRIDGELUX BXRC-35G2000-D-73	Warm, White	90	Flat	1.9 mm	36.2 mm	Chip On Board (COB)	Round	120 °	1907 lm	With Connector	30.9 V	123 lm/W	13.2 mm	500 mA	1 A	3500 K	85 °C
BRIDGELUX BXRC-35G10K0-B-72	Warm, White	90	Flat	1.9 mm	49.2 mm	Chip On Board (COB)	Round	120 °	12822 lm		52 V	137 lm/W	29.2 mm	1.8 A	3.6 A	3500 K
BRIDGELUX BXRC-35G10K0-C-83-SE	Warm, White	90	Flat	3.6 mm	49.2 mm	Chip On Board (COB)	Round	120 °	13461 lm		66.7 V	155 lm/W	29.1 mm	1.3 A	4.75 A	3500 K
BRIDGELUX BXRC-35E4000-F-Z3	Warm, White	80	Flat	1.9 mm	36.2 mm	Chip On Board (COB)	Round	120 °	3388 lm	With Connector	28.8 V	112 lm/W	18.4 mm	1.05 A	2.1 A	3500 K	85 °C
BRIDGELUX BXRC-35A1001-B-73	Warm, White	93	Flat	1.9 mm	20 mm	Chip On Board (COB)	Starboard	120 °	1053 lm	With Connector	34 V	115 lm/W	9.9 mm	270 mA	540 mA	3500 K	85 °C
BRIDGELUX BXRC-35A10K1-B-73	Warm, White	93	Flat	1.9 mm	49.2 mm	Chip On Board (COB)	Round	120 °	10872 lm	With Connector	50.7 V	119 lm/W	29.2 mm	1.8 A	3.6 A	3500 K	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 27.20
		10	$ 22.59

Description

General part information

BXRC-35 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 Vero® SE 29 Array White, Warm Round
