17-300420

Active

Amphenol CONEC

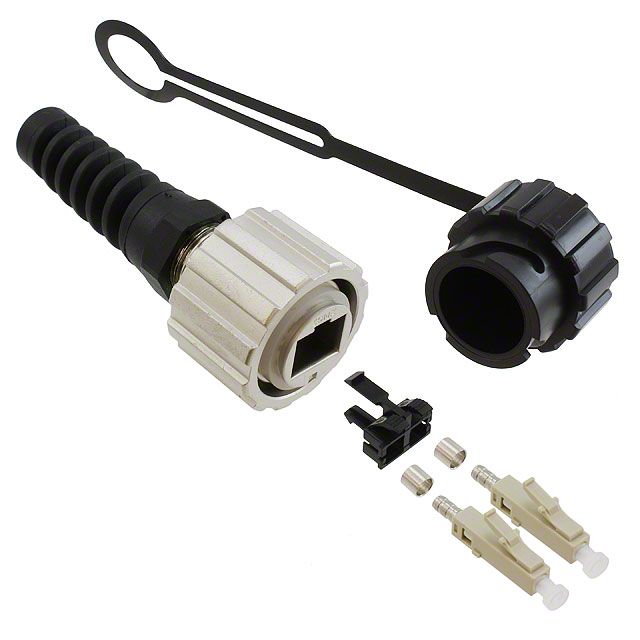

FO ADAPTER, LC DUPLEX PLUG-PLUG, MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

17-300420

Active

Amphenol CONEC

FO ADAPTER, LC DUPLEX PLUG-PLUG, MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17-300420

Body Material	Polyether Imide (PEI)
Boot Color	Black
Cable Diameter [diameter]	8 mm
Connector Style	LC
Connector Type	Plug
Fastening Type	Bayonet Lock
Features	Protective Cap, Strain Relief
Ferrule Material	Brass, Nickel Plated
Housing Color	Beige
Housing Material	Zinc Die Cast, Nickel Plated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mode	Multimode
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Simplex/Duplex	Duplex

17-3004 Series

Part	Ferrule Material	Body Material	Cable Diameter [diameter]	Ingress Protection	Connector Style	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Housing Color	Mode	Connector Type	Boot Color	Simplex/Duplex	Features	Mounting Type	Material Flammability Rating	Type	Color	Convert To (Adapter End)	Convert From (Adapter End)
Amphenol CONEC 17-300430	Brass Nickel Plated	Polyether Imide (PEI)	8 mm	IP67 - Dust Tight Waterproof	LC	Zinc Die Cast Nickel Plated	85 °C	-40 °C	Bayonet Lock	Green	Singlemode	Plug	Black	Duplex	Angle Polished Protective Cap Strain Relief	Free Hanging (In-Line)
Amphenol CONEC 17-300410	Brass Nickel Plated	Polyether Imide (PEI)	8 mm	IP67 - Dust Tight Waterproof	LC	Zinc Die Cast Nickel Plated	85 °C	-40 °C	Bayonet Lock	Blue	Singlemode	Plug	Black	Duplex	Protective Cap Strain Relief	Free Hanging (In-Line)
Amphenol CONEC 17-300460	Ceramic			IP67 - Dust Tight Waterproof		Zinc Die Cast	85 °C	-40 °C			Singlemode			Duplex	Angle Polished Dust Cap	Flange Panel Mount	UL94 V-0	Coupler	Silver	LC Receptacle	LC Receptacle
Amphenol CONEC 17-300440	Ceramic			IP67 - Dust Tight Waterproof		Zinc Die Cast	85 °C	-40 °C			Singlemode			Duplex		Flange Panel Mount	UL94 V-0	Coupler	Silver	LC Receptacle	LC Receptacle
Amphenol CONEC 17-300400	Ceramic			IP67 - Dust Tight Waterproof		Zinc Die Cast	85 °C	-40 °C			Singlemode			Duplex	Angle Polished Protective Cap	Bulkhead Panel Mount	UL94 V-0	Coupler	Silver	LC Receptacle	LC Receptacle
Amphenol CONEC 17-300420	Brass Nickel Plated	Polyether Imide (PEI)	8 mm	IP67 - Dust Tight Waterproof	LC	Zinc Die Cast Nickel Plated	85 °C	-40 °C	Bayonet Lock	Beige	Multimode	Plug	Black	Duplex	Protective Cap Strain Relief	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 46.07
		10	$ 42.27
		25	$ 40.65
		50	$ 39.29
		100	$ 37.12
		250	$ 36.04
Newark	Each	1	$ 43.28
		5	$ 41.00
		10	$ 38.95
		25	$ 37.13
		50	$ 35.30
		100	$ 33.71

Description

General part information

17-3004 Series

Fiber Optic Plug Connector LC Duplex Beige

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
