1410270-2

Active

TE Connectivity AMP Connectors

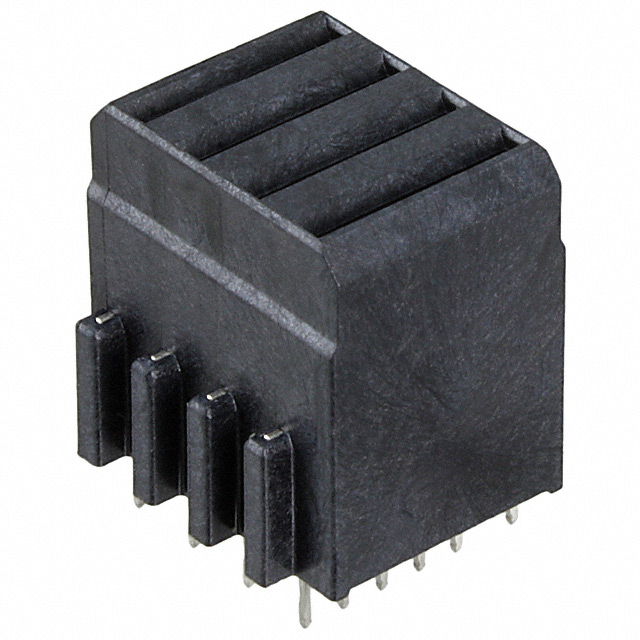

CONN RCPT 4POS PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT 4POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1410270-2

Color	Black
Connector Type	Receptacle, Female Blade Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Layout, Typical	4 Power
Current Rating (Amps)	20 A
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Termination	Press-Fit
Voltage Rating	250 VDC

CONN RCPT 4POS PCB

Part	Number of Positions Loaded	Connector Usage	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Layout, Typical	Contact Finish	Voltage Rating	Termination	Color	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Connector Type	Current Rating (Amps)
TE Connectivity AMP Connectors 1410270-2	All	Backplane	105 ░C	-55 °C	UL94 V-0	4 Power	Gold	250 VDC	Press-Fit	Black	4	50 µin	1.27 µm	Through Hole	1	Receptacle, Female Blade Sockets	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Connector Receptacle, Female Blade Sockets Through Hole Black
