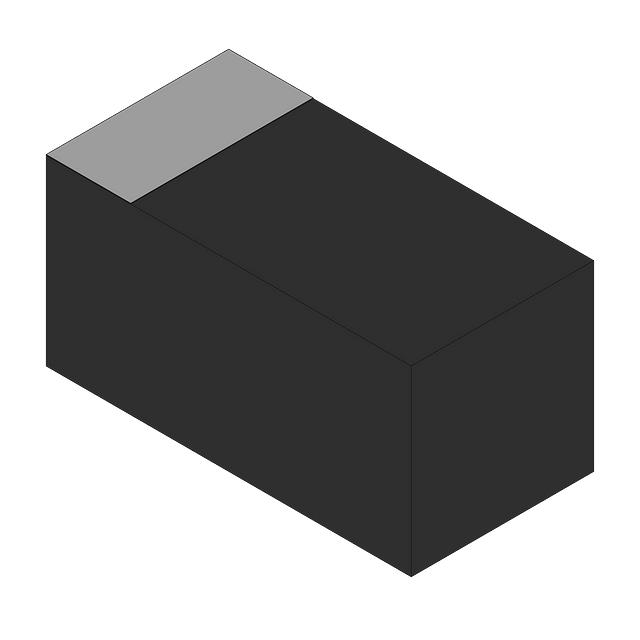

BAR9002ELSE6327XTSA1
Infineon Technologies
PIN DIODE, 800V, 0.1A, TSSLP-2-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
BAR9002ELSE6327XTSA1
Infineon Technologies
PIN DIODE, 800V, 0.1A, TSSLP-2-3
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | BAR9002ELSE6327XTSA1 |
|---|---|
| Current - Max [Max] | 100 mA |
| Diode Type | PIN - Single |
| Operating Temperature | 150 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Power Dissipation (Max) [Max] | 250 mW |
| Resistance @ If, F | 800 mOhm |
| Supplier Device Package | PG-TSSLP-2-3 |
| Voltage - Peak Reverse (Max) [Max] | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.30 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| 2500 | $ 0.08 | |||
| 5000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.34 | |||
| 25 | $ 0.30 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| 2500 | $ 0.08 | |||
| 5000 | $ 0.08 | |||
| Tape & Reel (TR) | 15000 | $ 0.07 | ||
| 30000 | $ 0.06 | |||
| 75000 | $ 0.06 | |||
| 105000 | $ 0.05 | |||
Description
General part information
BAR9002 Series
This Infineon RF PIN diode provides high-voltage handling capabilities and comes with low loss and low distortion levels. Its low forward resistance, low capacitance and low inductance simplify design and support designers in creating smaller and lighter end-solutions.
