3240873

Active

Phoenix Contact

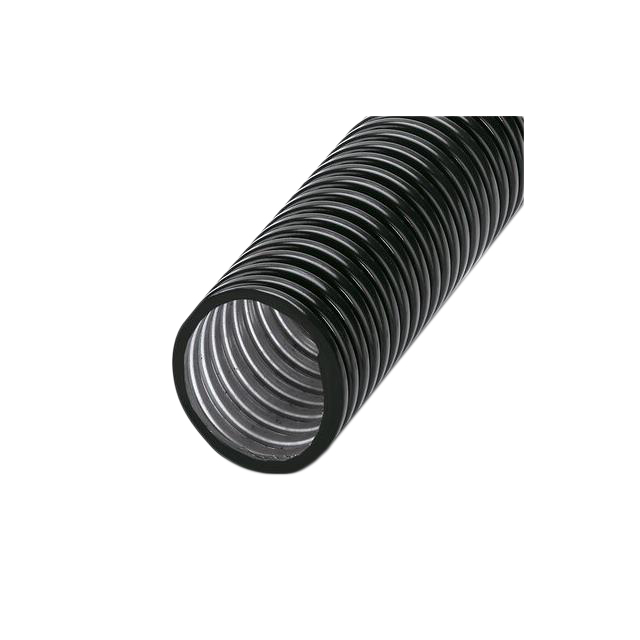

HOSE 1.496" ID STEEL 3.28' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3240873

Active

Phoenix Contact

HOSE 1.496" ID STEEL 3.28' BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 42.02

Description

General part information

WT-STEEL Series

Black Steel, Galvanized, PVC Coated Convoluted, Corrugated Wire Loom, Protective Hose 1.496" (38.00mm) 3.28' (1.00m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3240873	WT-STEEL Series

Bundle Diameter	-	152 mm
Bundle Diameter	-	5.98 "
Bundle Diameter	-	102 - 203 mm
Bundle Diameter	-	4.02 - 7.99 in
Color	Black	Silver, Black
Diameter - Inside	-	29 mm
Diameter - Inside [diameter]	38 mm	17 - 38 mm
Diameter - Inside [diameter]	1.496 "	0.669 - 1.496 in
Diameter - Outside [diameter]	1.772 in	0.827 - 1.772 in
Diameter - Outside [diameter]	45 mm	21 - 45 mm
Features	-	Halogen Free
Length - Actual	-	1.07 - 679.96 mm
Length - Actual	-	1.181 - 3.5 '
Length - Actual	-	259.08 - 838 mm
Length - Actual	-	0.85 - 2.749 ft
Length - Actual	-	10.2 in
Length - Approximate	-	10.25 - 33 in
Length - Approximate	-	60 in
Length [x]	1 m	1 m
Length [x]	3.28 ft	3.28 ft
Material	Galvanized, Steel, PVC Coated	Stainless Steel 316, Stainless Steel 304, Galvanized, Steel, PVC Coated
Mounting Type	-	Free Hanging (In-Line)
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-25 °C	-25 °C
Tensile Strength	-	136.08 kg
Tensile Strength	-	300 lbs
Type	Protective Hose, Wire Loom	Protective Hose, Wire Loom
Type Attributes	Convoluted, Corrugated	Convoluted, Corrugated
Width	-	0.311 "
Width	-	7.9 mm
Width	-	0.181 - 0.299 in
Width	-	4.6 - 7.59 mm
Wire/Cable Tie Type	-	Standard, Locking, Strapping

WT-STEEL Series

CBL TIE LOCKING SIL 300LB 1.706'

Part	Color	Wire/Cable Tie Type	Material	Length - Approximate	Mounting Type	Tensile Strength	Tensile Strength	Bundle Diameter	Bundle Diameter	Features	Width [x]	Width [x]	Length - Actual [x]	Length - Actual [x]	Width [y]	Width [y]	Length - Actual	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Type	Type Attributes	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Length [x]	Length [x]	Length - Actual	Length - Actual	Diameter - Inside	Length - Approximate [x]
Phoenix Contact 3240829	Silver	Locking, Standard	Stainless Steel 316	20.5 in	Free Hanging (In-Line)	136.08 kg	300 lbs	152 mm	5.98 "	Halogen Free	0.311 "	7.9 mm	520 mm	1.706 '
Phoenix Contact 3240811	Silver	Locking, Standard	Stainless Steel 304	20.5 in	Free Hanging (In-Line)			152 mm	5.98 "	Halogen Free			520 mm	1.706 '	0.181 in	4.6 mm
Phoenix Contact 3240828	Silver	Locking, Standard	Stainless Steel 316	14.25 in	Free Hanging (In-Line)	136.08 kg	300 lbs			Halogen Free	0.311 "	7.9 mm		1.181 ft			360 mm	102 mm	4.02 in
Phoenix Contact 3240870	Black		Galvanized, PVC Coated, Steel																	Protective Hose, Wire Loom	Convoluted, Corrugated	-25 °C	80 C	0.827 in	21 mm	17 mm	0.669 in	1 m	3.28 ft
Phoenix Contact 3240822	Silver	Strapping	Stainless Steel 316	10.25 in	Free Hanging (In-Line)										0.181 in	4.6 mm	259.08 mm													0.85 ft	10.2 in
Phoenix Contact 3240872	Black		Galvanized, PVC Coated, Steel																	Protective Hose, Wire Loom	Convoluted, Corrugated	-25 °C	80 C	1.417 in	36 mm		1.142 in	1 m	3.28 ft			29 mm
Phoenix Contact 3240823	Silver	Strapping	Stainless Steel 316	14.5 in	Free Hanging (In-Line)									1.181 ft	0.181 in	4.6 mm	360 mm
Phoenix Contact 3240723	Silver	Strapping	Stainless Steel 304	33 in	Free Hanging (In-Line)										0.181 in	4.6 mm	838 mm													2.749 ft
Phoenix Contact 3240805	Silver	Strapping	Stainless Steel 304		Free Hanging (In-Line)								1.07 m	3.5 ft	0.181 in	4.6 mm																	60 in
Phoenix Contact 3240826	Silver	Strapping	Stainless Steel 316		Free Hanging (In-Line)						0.311 "	7.9 mm	1.07 m	3.5 ft																			60 in
