3240870

Active

Phoenix Contact

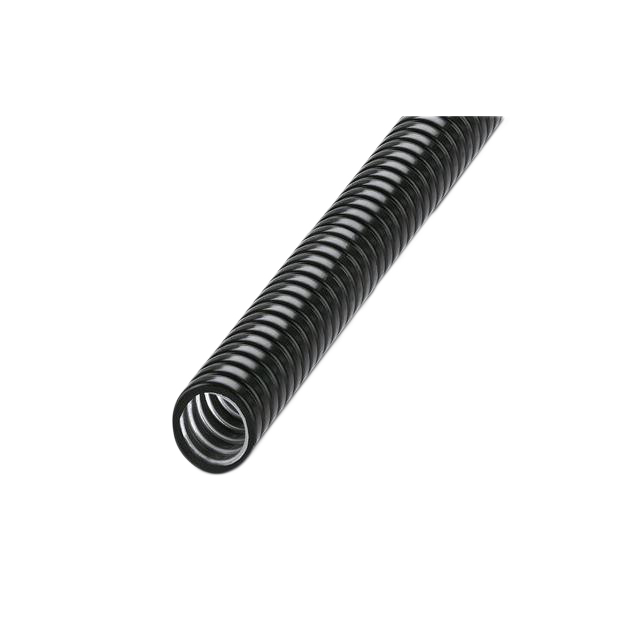

HOSE 0.669" ID STEEL 3.28' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3240870

Active

Phoenix Contact

HOSE 0.669" ID STEEL 3.28' BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3240870	WT-STEEL Series

Bundle Diameter	-	152 mm
Bundle Diameter	-	5.98 "
Bundle Diameter	-	102 - 203 mm
Bundle Diameter	-	4.02 - 7.99 in
Color	Black	Silver, Black
Diameter - Inside	-	29 mm
Diameter - Inside [diameter]	17 mm	17 - 38 mm
Diameter - Inside [diameter]	0.669 in	0.669 - 1.496 in
Diameter - Outside [diameter]	0.827 in	0.827 - 1.772 in
Diameter - Outside [diameter]	21 mm	21 - 45 mm
Features	-	Halogen Free
Length - Actual	-	1.07 - 679.96 mm
Length - Actual	-	1.181 - 3.5 '
Length - Actual	-	259.08 - 838 mm
Length - Actual	-	0.85 - 2.749 ft
Length - Actual	-	10.2 in
Length - Approximate	-	10.25 - 33 in
Length - Approximate	-	60 in
Length [x]	1 m	1 m
Length [x]	3.28 ft	3.28 ft
Material	Galvanized, Steel, PVC Coated	Stainless Steel 316, Stainless Steel 304, Galvanized, Steel, PVC Coated
Mounting Type	-	Free Hanging (In-Line)
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-25 °C	-25 °C
Tensile Strength	-	136.08 kg
Tensile Strength	-	300 lbs
Type	Protective Hose, Wire Loom	Protective Hose, Wire Loom
Type Attributes	Convoluted, Corrugated	Convoluted, Corrugated
Width	-	0.311 "
Width	-	7.9 mm
Width	-	0.181 - 0.299 in
Width	-	4.6 - 7.59 mm
Wire/Cable Tie Type	-	Standard, Locking, Strapping

WT-STEEL Series

CBL TIE LOCKING SIL 300LB 1.706'

Part	Color	Wire/Cable Tie Type	Material	Length - Approximate	Mounting Type	Tensile Strength	Tensile Strength	Bundle Diameter	Bundle Diameter	Features	Width [x]	Width [x]	Length - Actual [x]	Length - Actual [x]	Width [y]	Width [y]	Length - Actual	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Type	Type Attributes	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Length [x]	Length [x]	Length - Actual	Length - Actual	Diameter - Inside	Length - Approximate [x]
Phoenix Contact 3240829	Silver	Locking, Standard	Stainless Steel 316	20.5 in	Free Hanging (In-Line)	136.08 kg	300 lbs	152 mm	5.98 "	Halogen Free	0.311 "	7.9 mm	520 mm	1.706 '
Phoenix Contact 3240811	Silver	Locking, Standard	Stainless Steel 304	20.5 in	Free Hanging (In-Line)			152 mm	5.98 "	Halogen Free			520 mm	1.706 '	0.181 in	4.6 mm
Phoenix Contact 3240828	Silver	Locking, Standard	Stainless Steel 316	14.25 in	Free Hanging (In-Line)	136.08 kg	300 lbs			Halogen Free	0.311 "	7.9 mm		1.181 ft			360 mm	102 mm	4.02 in
Phoenix Contact 3240870	Black		Galvanized, PVC Coated, Steel																	Protective Hose, Wire Loom	Convoluted, Corrugated	-25 °C	80 C	0.827 in	21 mm	17 mm	0.669 in	1 m	3.28 ft
Phoenix Contact 3240822	Silver	Strapping	Stainless Steel 316	10.25 in	Free Hanging (In-Line)										0.181 in	4.6 mm	259.08 mm													0.85 ft	10.2 in
Phoenix Contact 3240872	Black		Galvanized, PVC Coated, Steel																	Protective Hose, Wire Loom	Convoluted, Corrugated	-25 °C	80 C	1.417 in	36 mm		1.142 in	1 m	3.28 ft			29 mm
Phoenix Contact 3240823	Silver	Strapping	Stainless Steel 316	14.5 in	Free Hanging (In-Line)									1.181 ft	0.181 in	4.6 mm	360 mm
Phoenix Contact 3240723	Silver	Strapping	Stainless Steel 304	33 in	Free Hanging (In-Line)										0.181 in	4.6 mm	838 mm													2.749 ft
Phoenix Contact 3240805	Silver	Strapping	Stainless Steel 304		Free Hanging (In-Line)								1.07 m	3.5 ft	0.181 in	4.6 mm																	60 in
Phoenix Contact 3240826	Silver	Strapping	Stainless Steel 316		Free Hanging (In-Line)						0.311 "	7.9 mm	1.07 m	3.5 ft																			60 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 13.60

Description

General part information

WT-STEEL Series

Black Steel, Galvanized, PVC Coated Convoluted, Corrugated Wire Loom, Protective Hose 0.669" (17.00mm) 3.28' (1.00m)
